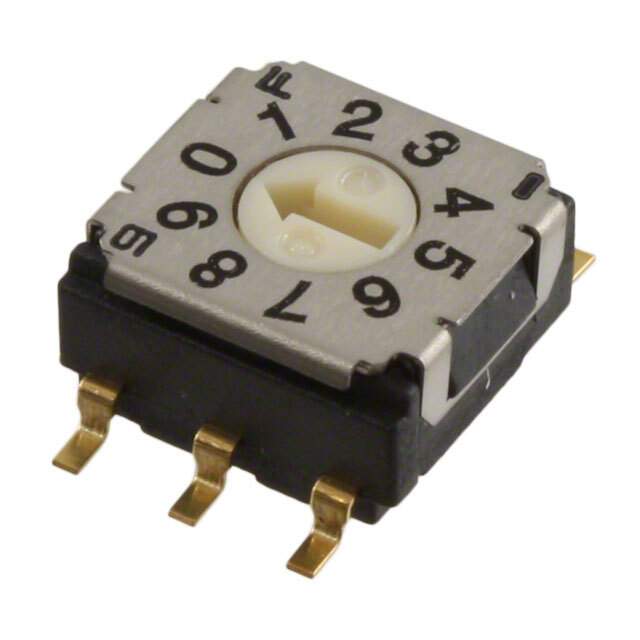

SH-7030TB Real Image
Same model may have multiple batches, images only for reference.

SH-7030TB

Part No SH-7030TB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SW ROTARY DIP BCD COMP 100MA 5V
Datasheet
SH-7030TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit BCD Complement
Number of Positions 10
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.148" (3.75mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.287" (7.30mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 10,000 Steps
Win Source Part Number 1095637-SH-7030TB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SH-7000
Introduction Date September 18, 2008
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SH-7030TB CAD Model

Description

The Copal Electronics Inc. SH-7030TB is a rotary switch with 10 positions and a pitch of 0.100" (2.54mm), full.

  • Manufacturer: Copal Electronics Inc.
  • Positions: 10
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Height Above Board: 0.148" (3.75mm)
  • Length: 0.287" (7.30mm)
  • Washable: Yes
  • Circuit: BCD Complement
  • Actuator Level: Flush, Recessed
  • Electrical Life: 10,000 steps
  • Applications: Consumer Electronics, Industrial Control, Medical Equipment
