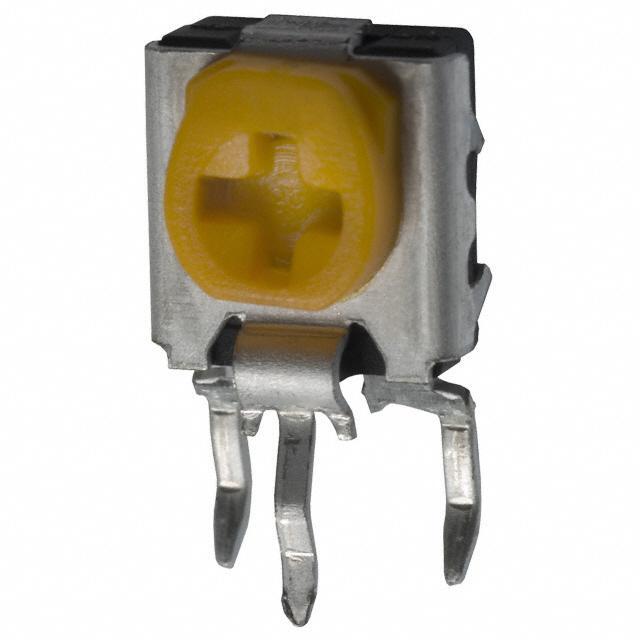

Same model may have multiple batches, images only for reference.
EVN-D2AA03B55 Panasonic
Same model may have multiple batches, images only for reference.

EVN-D2AA03B55

Part No EVN-D2AA03B55
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.1W TH / Res Carbon Composition Trimmer 500K Ohm 0.1W(1/10W) 1(Elec)/1(Mech)Turns 3.2mm (6.4 X 4.65 X 8mm) Pin Thru-Hole Bulk
Datasheet
EVN-D2AA03B55 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Series EVN
Packaging Bulk
Part Status Obsolete(EOL)
Resistance (Ohms) 500k
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Carbon
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.252" x 0.307" Face x 0.307" H (6.40mm x 7.80mm x 7.80mm)
Win Source Part Number 774282-EVN-D2AA03B55
Popularity Medium
Supply and Demand Status Limited
Family Name EVND
Introduction Date February 02, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EVN-D2AA03B55 CAD Model

Description

The Panasonic Electronic Components potentiometer is from Panasonic Electronic Components.

  • Series: EVN
  • Resistance: 500k ohms
  • Power: 0.1W
  • Material: Carbon
  • Tolerance: ±30%
  • Mounting Style: Through Hole
  • Termination Style: PC Pins
  • Dimension: 0.252 inches x 0.307 inches face x 0.307 inches H
  • Status: Obsolete (EOL)
