Same model may have multiple batches, images only for reference.

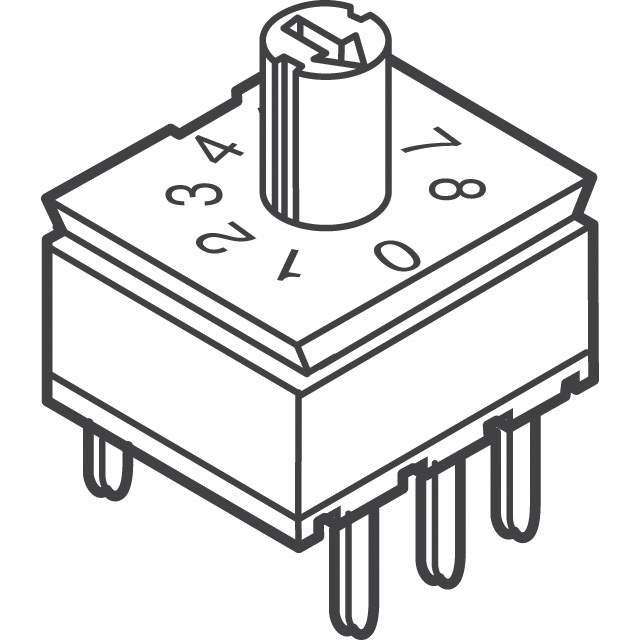

94HBB16RA Real Image
Same model may have multiple batches, images only for reference.

94HBB16RA

Part No 94HBB16RA
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 100MA 50V
Datasheet
94HBB16RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit Hexadecimal
Number of Positions 16
Current Rating 100mA
Voltage Rating 50VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.400" (10.16mm)
Mounting Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed
Body Material Plastic
Length 0.430" (10.92mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 10,000 Cycles
Win Source Part Number 1040954-94HBB16RA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 94HBB16RA CAD Model

Description

The Grayhill Inc. 1040954-94HBB16RA switch is a sealed switch with 16 positions. Grayhill Inc. 1040954-94HBB16RA is a product by Grayhill Inc..

  • Type: sealed switch
  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Contact Finish: gold
  • Voltage Rating: 50VDC
  • Current Rating: 100mA
  • Height Above Board: 0.400" (10.16mm)
  • Length: 0.430" (10.92mm)
  • Series: 94H
  • Base Product Number: 94HBB16
  • Circuit: hexadecimal
  • Actuator Type: rotary with shaft
  • Actuator Level: raised
  • Washable: Yes
  • Mounting Type: through hole, right angle
  • Operating Temperature Range: -40°C to 85°C
  • REACH: unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.9065
