CHS-01TB Real Image CHS-01TB Real Image
Same model may have multiple batches, images only for reference.
CHS-01TB Real Image CHS-01TB Real Image
CHS-01TB Real Image CHS-01TB Real Image
Same model may have multiple batches, images only for reference.

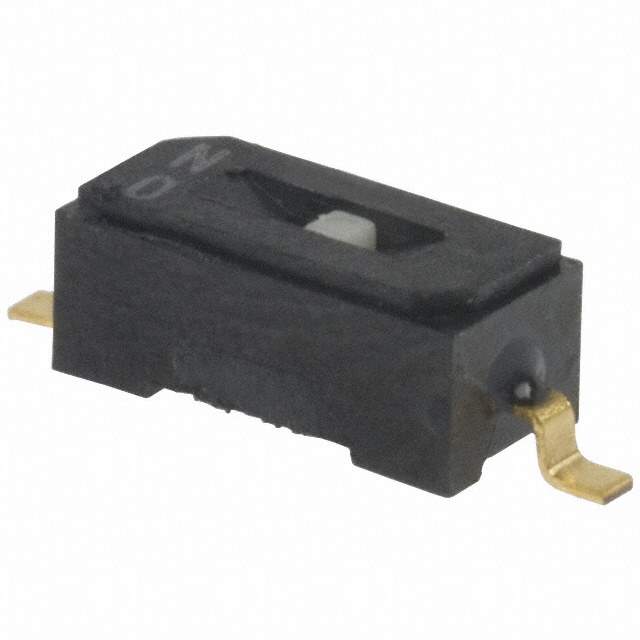

CHS-01TB

Part No CHS-01TB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 6V
Datasheet
CHS-01TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 1
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.098" (2.50mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.098" (2.50mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 2,000 Cycles
Win Source Part Number 1029211-CHS-01TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHS-01TB CAD Model

Description

The Copal Electronics Inc. switch is a SPST circuit switch with a half pitch of 0.050 inches.

  • Circuit: SPST
  • Half Pitch: 0.050 inches
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Mounting: SMD (SMT)
  • Termination Style: gull-wing
  • Actuator Type: slide (standard)
  • Electrical Life: 2,000 cycles
  • Mechanical Life: -
  • Actuator Level: flush, recessed
  • Washable: yes
  • Body Material: Polyphenylene Sulfide (PPS)
  • Operating Temperature Range: -40°C to 85°C
