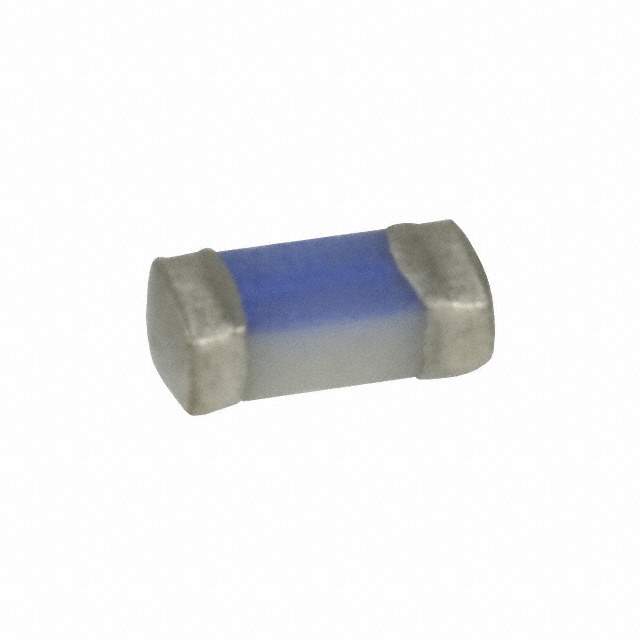

The 0603FA750-R is a fast-acting surface mount fuse from Cooper Bussmann (now Eaton). This fuse is designed to protect sensitive electronic circuits from overcurrent conditions. It is a small, ceramic fuse with a thin film construction, making it ideal for applications where space is limited. Its fast-acting characteristic allows it to quickly interrupt the circuit in the event of a short circuit or overload, preventing damage to downstream components.

Applications:

• Mobile Phones: Protects the internal circuitry of mobile phones from overcurrent.
• Tablets: Protects the internal components of tablets from damage due to current surges.
• Laptops: Provides overcurrent protection for laptop motherboards and peripherals.
• SSD (Solid State Drives): Protects SSDs from electrical faults and overcurrent conditions.
• Power Supplies: Provides overcurrent protection in low-power power supplies.

Features:

• Fast-Acting: Quickly interrupts the circuit under overcurrent conditions.
• Surface Mount: Designed for surface mount assembly on PCBs.
• Ceramic Construction: Provides excellent thermal and mechanical stability.
• Small Size: Compact 0603 package for space-constrained applications.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directives.

Benefits:

• Provides reliable overcurrent protection for sensitive electronic circuits.
• Prevents damage to downstream components caused by short circuits or overloads.
• Enables compact designs due to its small size.
• Ensures compliance with environmental regulations.

Additional Details:

The 0603FA750-R has a current rating of 750mA (0.75A) and a voltage rating of typically 32V or 63V. The interrupting rating indicates the maximum current that the fuse can safely interrupt, which is typically several times the rated current. This fuse is designed to be used in low-energy circuits. Consult the datasheet for detailed electrical characteristics, including I2t values, voltage drop, and temperature derating information. Proper placement and soldering techniques are essential for reliable performance.
