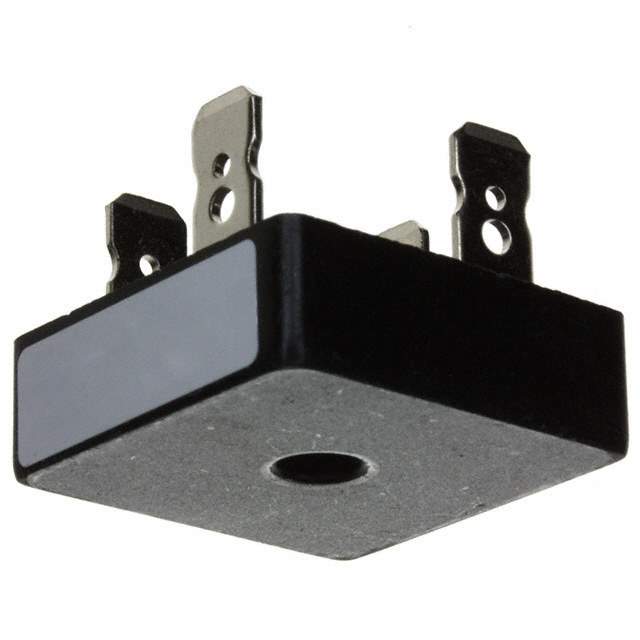

36MB120A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer INTERNATIONAL RECTIFIER
Win Source Part Number 1128316-36MB120A
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 36MB120A CAD Model

Description

The International Rectifier 36MB120A is a bridge rectifier that is designed to provide full-wave rectification of AC voltage.

  • Maximum Average Forward Current: 36A
  • Maximum Repetitive Reverse Voltage: 1200V
  • Forward Voltage Drop: Low
  • Surge Capability: High
  • Mounting: Through-hole technology (THT)
  • Package: 4-pin DIP
  • Manufacturer: International Rectifier
