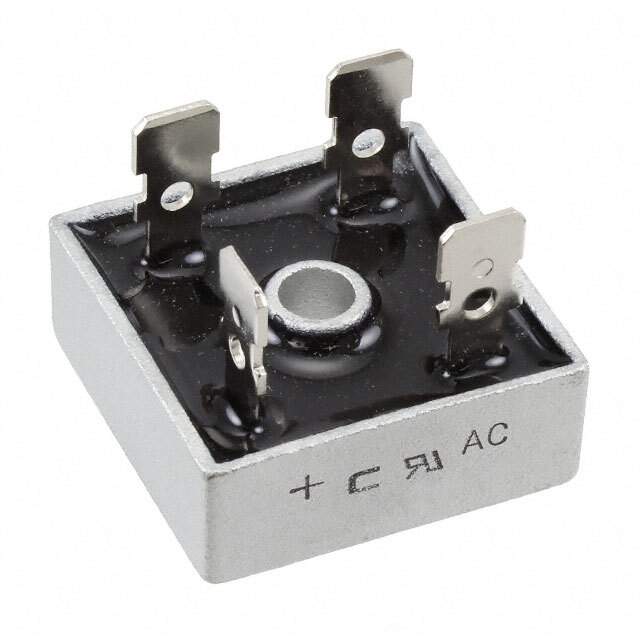

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 5 A
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type QC Terminal
Package / Case 4-Square, KBPC
Supplier Device Package KBPC
Base Product Number KBPC1004
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-1847,KBPC1004-G-ND
Standard Package 50
Win Source Part Number 1067153-KBPC1004-G
Ultra Librarian 3D Model Ultra Librarian KBPC1004-G CAD Model

Description

The Comchip Technology KBPC1004-G is a single-phase bridge rectifier that is surface mountable.

  • Package: KBPC
  • Maximum Voltage Rating: 400 V
  • Maximum Current Rating: 10 A
  • Voltage Forward: 1.1 V @ 5 A
  • Current Reverse Leakage: 10 µA @ 400 V
  • ECCN: EAR99
  • Popularity: Medium
  • Operating Temperature: -55°C to 150°C (TJ)
  • REACH: Unaffected
