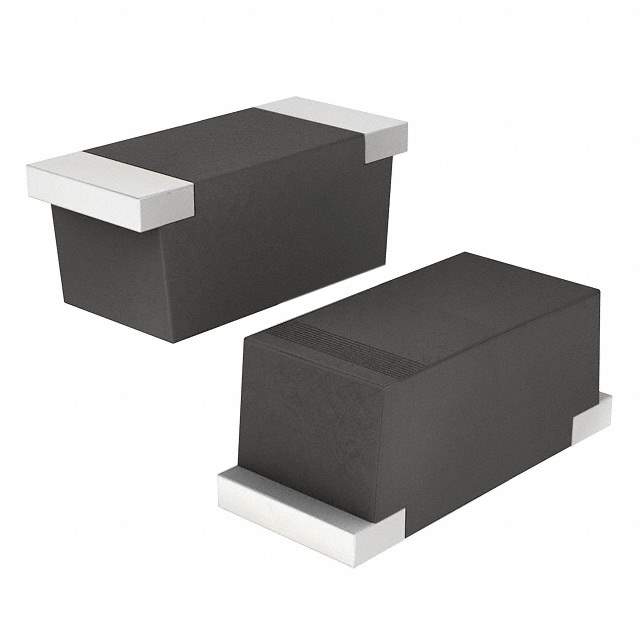

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 600V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Mini SMA/SOD-123
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1029172-CGRM4005-G
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian CGRM4005-G CAD Model

Description

The Comchip Technology 1029172-CGRM4005-G is a standard diode that is designed for surface-mounting.

  • Mounting: Surface-mounting
  • Maximum DC Reverse Voltage: 600V
  • Average Rectified Current: 1A
  • Maximum Forward Voltage: 1.1V @ 1A
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Capacitance: 15pF @ 4V, 1MHz
  • Temperature Range: -55°C to 150°C (TJ)
  • Case/Package: Mini SMA/SOD-123
  • Recovery Speed: >500ns, > 200mA (Io)
  • Supply and Demand Status: Sufficient
  • Package Quantity: 2,500 pcs
