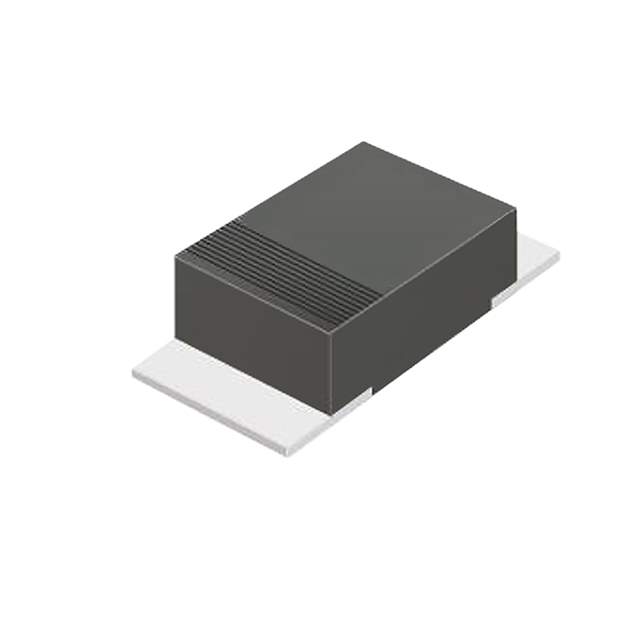

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 7 Weeks
Features Diode Standard 600 V 1A Surface Mount SOD-123F
Manufacturer Comchip Technology
Package Reel - TR
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Surface Mount
Package SOD-123F
Case / Package SOD-123F
Family Name CGRKM4005
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1513-2, 641-1513-1, 641-1513-6, Q12648244A
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866382-CGRKM4005-HF
Ultra Librarian 3D Model Ultra Librarian CGRKM4005-HF CAD Model

Description

The Comchip Technology 866382-CGRKM4005-HF is a diode standard that is designed for use in various applications.

  • Voltage Rating: 600 V
  • Current Rating: 1A
  • Mounting: Surface Mountable
  • Package: SOD-123F
  • Recovery Time: Over 500ns
  • Current Rating: Over 200mA
  • Family Name: CGRKM4005
  • Category: Discrete Semiconductor Products
  • Reels: 2500 pieces
  • Supply and Demand Status: Limited
  • REACH: Unaffected
  • HTSUS Code: 8541.10.0080
  • Manufacturer: Comchip Technology
