Same model may have multiple batches, images only for reference.

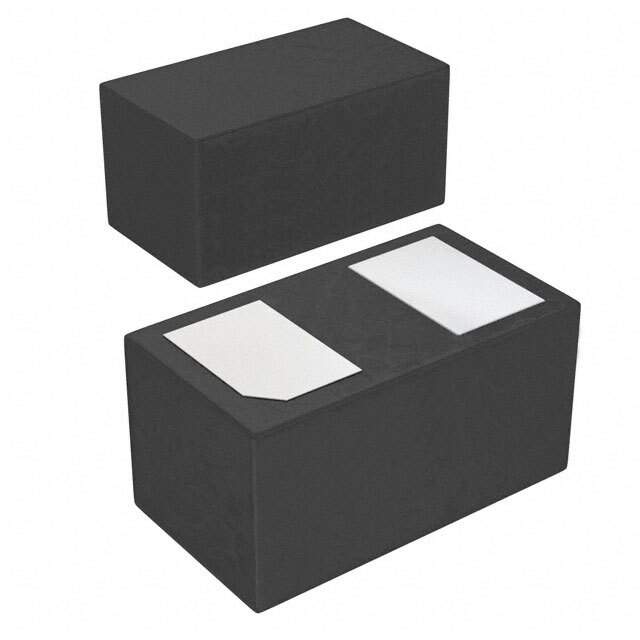

CDBZ0130L-HF Real Image
Same model may have multiple batches, images only for reference.

CDBZ0130L-HF

Part No CDBZ0130L-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 100MA 0201 / Low VF SMD Schottky Barrier Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Comchip Technology
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Maximum) at If 370mV at 10mA
Current - Reverse Leakage at Vr 7μA at 10V
Mounting Style SMD
Manufacturer Package 0201 (0603 Metric)
Supplier Device Package 0201 (0603 Metric)
Operating Temperature - Junction 125°C (Maximum)
Part Number Series CDBZ0130
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803756-CDBZ0130L-HF
Ultra Librarian 3D Model Ultra Librarian CDBZ0130L-HF CAD Model

Description

The Comchip Technology 803756-CDBZ0130L-HF is a Schottky diode.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 100mA
  • Forward Voltage: 370mV @ 10mA
  • Reverse Leakage Current: 7μA @ 10V
  • Mounting: SMD
  • Supplier Device Package: 0201 (0603 Metric)
  • Maximum Operating Temperature: 125°C
  • MSL Level: 1 (Unlimited)
  • Series: CDBZ0130
  • Manufacturer Package: 0201 (0603 Metric)
  • Supply and Demand Status: Balanced
