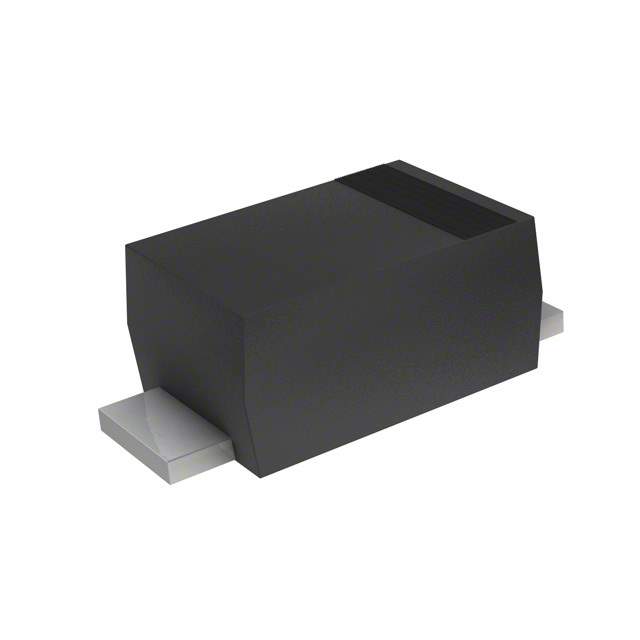

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 385mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 250μA @ 20V
Mounting SMD (SMT)
Case / Package SOD-123
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1028678-CDBW0520L-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDBW0520L-HF CAD Model

Description

The CDBW0520L-HF is a Schottky diode designed by Comchip Technology.

  • Diode Type: Schottky
  • Maximum DC Reverse Voltage: 20V
  • Average Rectified Current: 500mA
  • Forward Voltage: 385mV @ 500mA
  • Reverse Leakage Current: 250μA @ 20V
  • Packaging: Reel-TR
  • Mounting: SMD
  • Speed (Frequency): Fast Recovery = 200mA (Io)
  • Operating Temperature: Up to 125°C (Max)
  • Supply and Demand Status: Balanced
