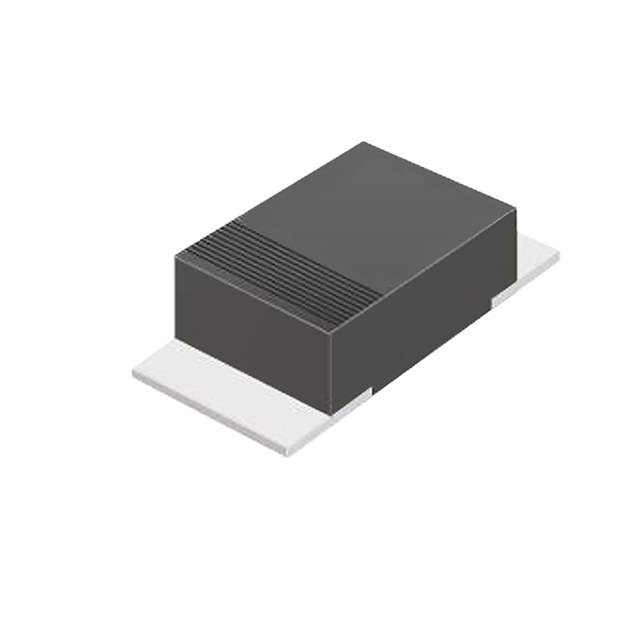

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 11 Weeks
Features Diode Standard 100 V 1A Surface Mount KM/SOD-123F
Manufacturer Comchip Technology
Series Automotive, AEC-Q101
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package SOD-123T
Case / Package KM/SOD-123F
Family Name ACGRKM4002
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866379-ACGRKM4002-HF
Ultra Librarian 3D Model Ultra Librarian ACGRKM4002-HF CAD Model

Description

The Comchip Technology 866379-ACGRKM4002-HF is a standard diode with a fast recovery speed of less than 500ns and a current rating of over 200mA.

  • Voltage Rating: 100V
  • Maximum Current Rating: 1A
  • Package: Surface Mount KM/SOD-123F
  • Family: ACGRKM4002
  • Category: Discrete Semiconductor Products
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Reel: 2500
  • Estimated Production Lead Time: 11 weeks
  • REACH: Unaffected
  • HTSUS: 8541.10.0080 compliant
  • Manufacturer: Comchip Technology
