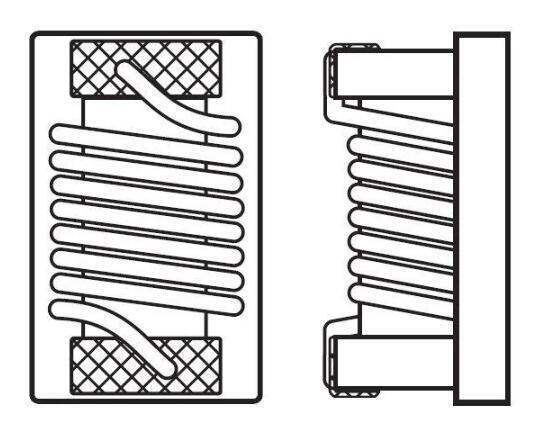

Same model may have multiple batches, images only for reference.

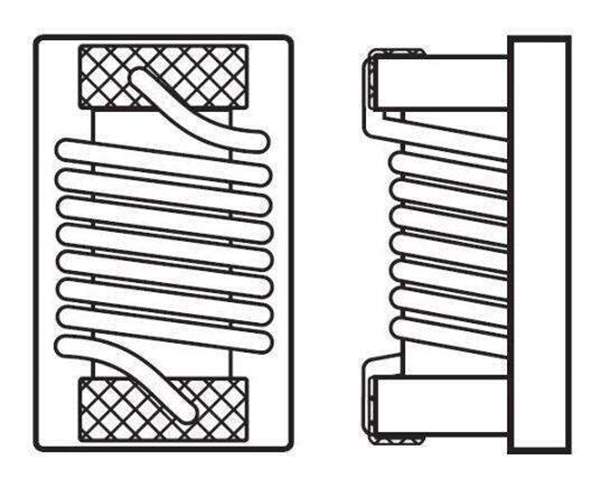

0603HL-222XJRC Coilcraft
Same model may have multiple batches, images only for reference.

0603HL-222XJRC

Part No 0603HL-222XJRC
Manufacturer Coilcraft
Catalog RF Inductors - SMD
Description RF Inductors - SMD 0603 2200nH Unshld 5% 130mA 5.9Ohms
Datasheet
0603HL-222XJRC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Coilcraft
Category RF Inductors - SMD
Shielding Unshielded
Inductance 2.2 uH
Tolerance 5 %
Maximum DC Current 130 mA
Maximum DC Resistance 5.9 Ohms
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Q Minimum 16
Self Resonant Frequency 165 MHz
Termination Standard
Ultra Librarian 3D Model Ultra Librarian 0603HL-222XJRC CAD Model

Description

RF Inductors - SMD 0603 2200nH Unshld 5% 130mA 5.9Ohms
