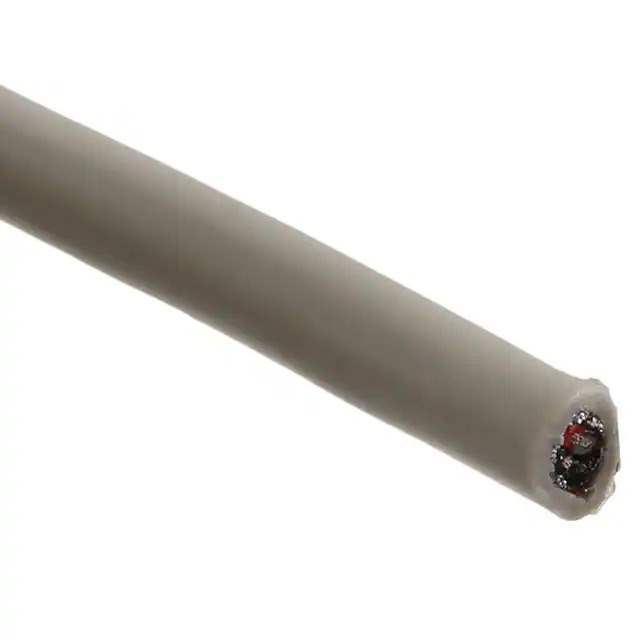

The multi-conductor cable with the Win Source Part Number 846227-2725-2828-BE-01000-A is a versatile cable used in electronic components and manufactured by CNC Tech.

• Category: Cables, Wires - Multiple Conductor Cables
• Drain Wire: Yes
• Package: Bulk
• Wire Gauge: 28 AWG
• Length: 1000.0' (304.8m)
• Cable Type: Multi-Conductor
• Application: USB 2.0
• Voltage Rating: 30 V
• Number of Conductors: 4 (1 Pair + 2)
• Standard Package: 1 piece
• UL Style: 2725
• Shield Material: Aluminum and Copper, Tinned
• Conductor Strand: 7/0.0047"
• Conductor Material: Copper, Tinned
• Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
• Diameter: 0.150" (3.81mm)
• Shield Type: Foil and Braid
• Jacket Color: Beige
• Conductor Insulation Material: High-Density Polyethylene (HDPE) and Poly-Vinyl Chloride (PVC)
• Jacket (Insulation) Thickness: 0.0264" (0.671mm)
• Shield Coverage: 100%
• Operating Temperature: Up to 80°C
• ECCN: EAR99
• REACH: Not affected
• HTSUS: 8544.49.2000
