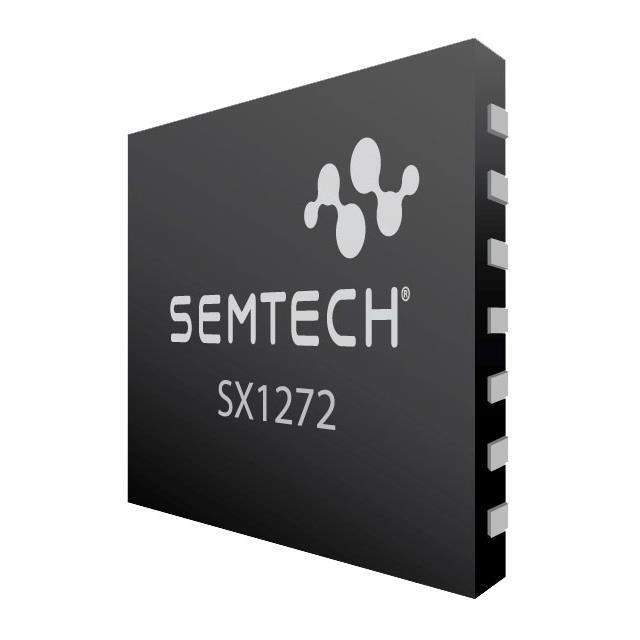

SX1272IMLTRT Semtech Corporation SX1272IMLTRT Real Image SX1272IMLTRT label picture SX1272IMLTRT real image13303 SX1272IMLTRT real image13304
Same model may have multiple batches, images only for reference.
SX1272IMLTRT Semtech Corporation SX1272IMLTRT Real Image SX1272IMLTRT label picture SX1272IMLTRT real image13303 SX1272IMLTRT real image13304
SX1272IMLTRT Semtech Corporation SX1272IMLTRT Real Image SX1272IMLTRT label picture SX1272IMLTRT real image13303 SX1272IMLTRT real image13304
Same model may have multiple batches, images only for reference.

SX1272IMLTRT

Part No SX1272IMLTRT
Manufacturer Semtech Corporation
Catalog RF Transceiver ICs
Description Low Power Long Range Transceiver
Datasheet
SX1272IMLTRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Semtech Corporation
Packaging Reel - TR
Type TxRx Only
RF Family/Standard 802.15.4
Protocol LoRa
Modulation FHSS, FSK, OFDM, O-QPSK
Frequency 860MHz ~ 1.02GHz
Data Rate (Maximum) 300kbps
Power - Output 20dBm
Sensitivity -137dBm
Serial Interfaces SPI
GPIO 6
Operating Supply Voltage 1.8 V ~ 3.7 V
Current - Receiving 10.5mA ~ 11.2mA
Current - Transmitting 18mA ~ 125mA
Operating Temperature Range -40°C ~ 85°C
Package 28-VQFN Exposed Pad
Win Source Part Number 1262750-SX1272IMLTRT
Manufacturer Homepage www.semtech.com
Family Name SX1272
Introduction Date June 01, 2013
ECCN 5A991.b
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SX1272IMLTRT CAD Model

Description

The Semtech Corporation SX1272IMLTRT is a TxRx Only type electronic component that operates in a frequency range of 860MHz to 1.02GHz.

  • Protocol: LoRa
  • Maximum Data Rate: 300kbps
  • Sensitivity: -137dBm
  • Power Output: 20dBm
  • Current Receiving: 10.5mA to 11.2mA
  • Current Transmitting: 18mA to 125mA
  • GPIO: 6
  • Serial Interface: SPI
  • Package: 28-VQFN Exposed Pad
  • Operating Supply Voltage: 1.8V to 3.7V
  • Compliance: Halogen-free
  • Supply and Demand: Balance
