1003-005-23100

Part No 1003-005-23100
Manufacturer CNC Tech
Catalog USB, DVI, HDMI Connectors —USB, DVI, HDMI Connector Assemblies

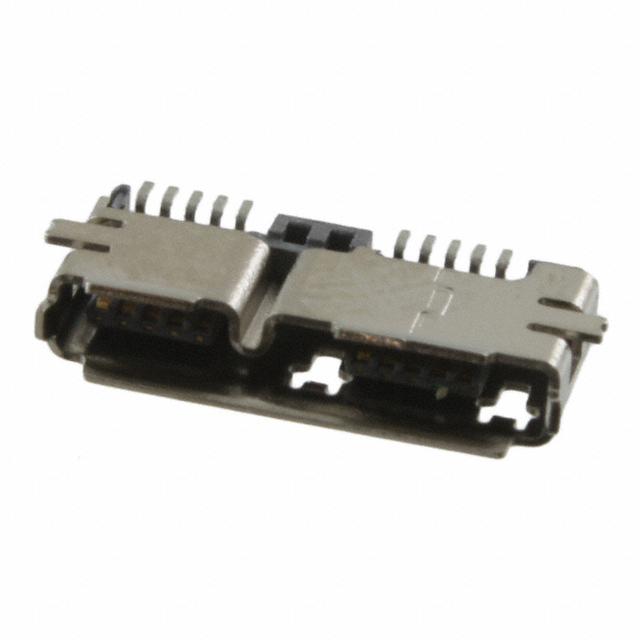

Description CONN RCPT USB3.0 MICRO AB SMD RA
Datasheet
1003-005-23100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsUSB, DVI, HDMI ConnectorsUSB, DVI, HDMI Connector Assemblies
Manufacturer CNC Tech
Part Status Obsolete
Connector Type USB - micro AB
Number of Contacts 10
Gender Receptacle
Specifications USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Number of Ports 1
Contact Finish Gold
Insulation Color Black
Base Product Number 1003-005
Ultra Librarian 3D Model Ultra Librarian 1003-005-23100 CAD Model
