Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer CML Microcircuits
Function Transceiver
Interface C-Bus
Supply Voltage (V) 2.7V ~ 5.5V
Supply Current 9mA
Power (W) 1.11W
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 28-TSSOP
Supplier Device Package 28-TSSOP
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 242754-CMX860E1
Popularity Low
Supply and Demand Status Balance
Family Name CMX860
Introduction Date January 30, 2002
ECCN EAR99
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian CMX860E1 CAD Model

Description

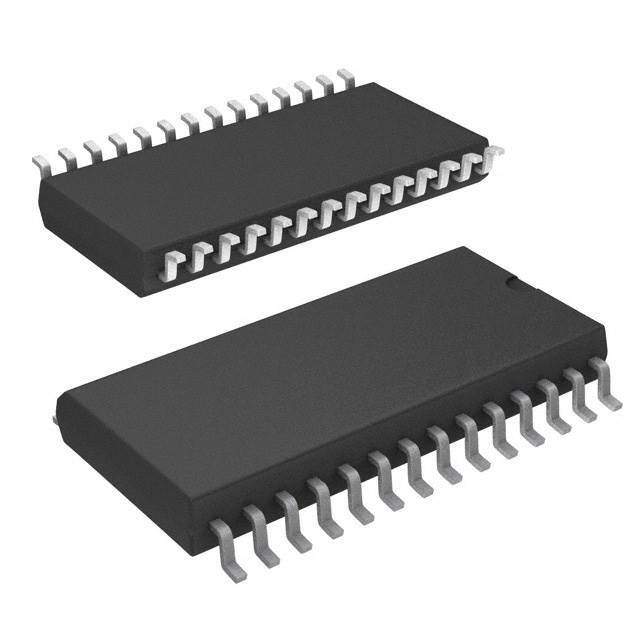

CMX860E1

Product Description:

The CMX860E1 is a versatile integrated voice and data processor that delivers outstanding performance for voice, fax, and data communication systems. Designed to support a range of applications, this component is highly adaptable, ensuring seamless integration in both existing and new product designs.

Key Features and Benefits:

  • Flexible and programmable architecture
  • Wide range of voice and data processing capabilities
  • Compact and power-efficient design
  • Built-in modem functions

Applications:

  • Telecommunication systems
  • Fax machines
  • Voice recognition systems
  • Data communication devices
  • Consumer electronic products

Additional Details:

The CMX860E1 is equipped with advanced features that support robust data communication. It provides the required functionality for applications involving digital signal processing and modem operations, making it suitable for use in a wide variety of communication applications.
