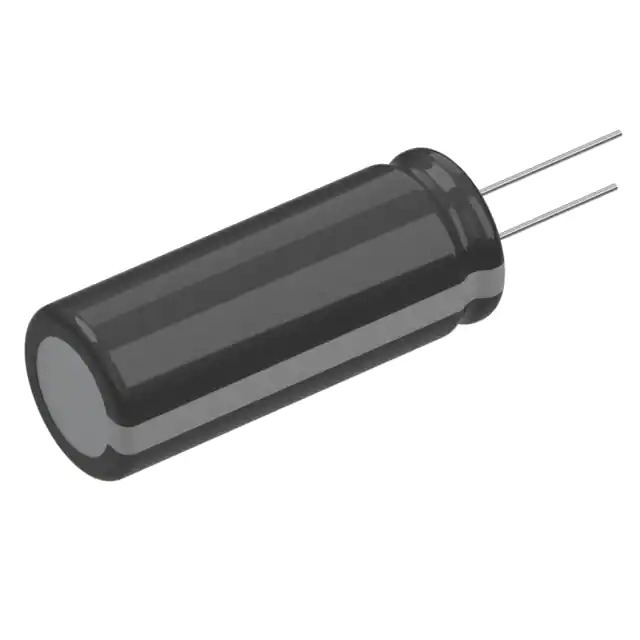

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series CXW
Package Bulk
Product Status Active
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 970 mA @ 120 Hz
Ripple Current @ High Frequency 1.455 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358171-450CXW150MEFR18X40
Ultra Librarian 3D Model Ultra Librarian 450CXW150MEFR18X40 CAD Model

Description

The Rubycon 1358171-450CXW150MEFR18X40 is an aluminum electrolytic capacitor designed for general-purpose applications. It has a capacitance of 150 µF and a voltage rating of 450 V.

  • Manufacturer: Rubycon
  • Product Name: 1358171-450CXW150MEFR18X40
  • Capacitance: 150 µF
  • Voltage Rating: 450 V
  • Temperature Range: -40°C to 105°C
  • Lifetime: 5,000 hours @ 105°C
  • Package Type: Radial, Can
  • Diameter: 0.709"
  • Height: 1.654"
  • Lead Spacing: 0.295" (7.50mm)
  • Mounting Type: Through-Hole
  • Ripple Current (Low Frequency): 970 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.455 A @ 10 kHz
