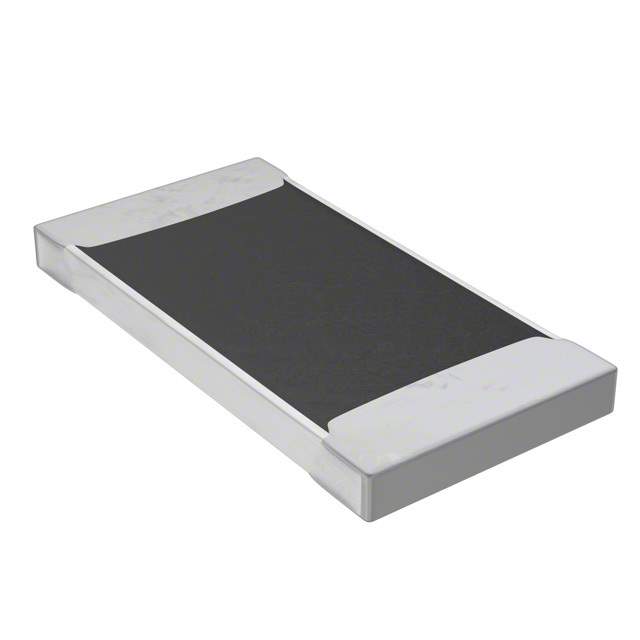

CSNL2512JTL750 Real Image
Same model may have multiple batches, images only for reference.

CSNL2512JTL750

Part No CSNL2512JTL750
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.00075 OHM 5% 2W 2512 / Res Metal Foil 2512 0.00075 Ohm 5% 2W ±50ppm/°C Pad SMD T/R
Datasheet
CSNL2512JTL750 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Series CSNL
Packaging Reel package
Resistance (Ohms) 0.00075
Tolerance ±5%
Power (Watts) 2W
Composition Metal Foil
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Operating Temperature Range -55°C ~ 170°C
Package 2512 (6432 Metric)
Manufacturer Package 2512
Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Maximum) 0.057" (1.45mm)
Number of Terminations 2
Win Source Part Number 777713-CSNL2512JTL750
Popularity Medium
Supply and Demand Status Limited
Family Name CSNL
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian CSNL2512JTL750 CAD Model

Description

The CSNL2512JTL750 is a current sense resistor manufactured by Stackpole Electronics Inc.

  • Series: CSNL
  • Features: Moisture-Resistant
  • Operating Temperature: High
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
