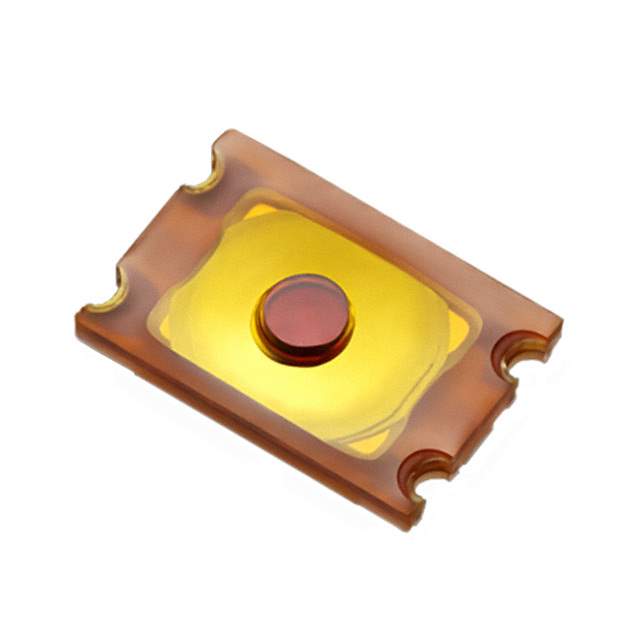

LS75C2D-T Real Image
Same model may have multiple batches, images only for reference.

LS75C2D-T

Part No LS75C2D-T
Manufacturer Citizen
Catalog Tactile Switches
Description SWITCH TACT SPST-NO 0.02A 12V
Datasheet
LS75C2D-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Citizen
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 12VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.50mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 2.80mm x 1.90mm
Illumination Non-Illuminated
Operating Force 160gf
Switch Travel 0.15mm
Mechanical Life 300,000 Cycles
Win Source Part Number 114361-LS75C2D-T
Ultra Librarian 3D Model Ultra Librarian LS75C2D-T CAD Model

Description

The Citizen electronic component is a high-quality product that is perfect for a variety of applications. This component is an SPST-NO circuit switch with an off-mom switch function. The actuator type is standard, and the switch travel is 0.15mm. The contact rating at voltage is 0.02A @ 12VDC, and the operating force is 160gf. The product is well-balanced in terms of supply and demand status, and it has a mechanical life of 300,000 cycles. The product is manufactured by Citizen and has a Win Source Part Number of 114361-LS75C2D-T.
