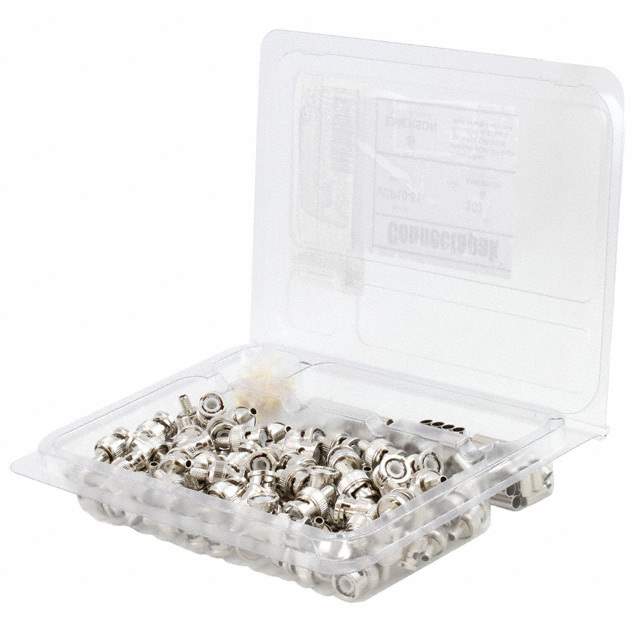

VCP10-51 Real Image
Same model may have multiple batches, images only for reference.

VCP10-51

Part No VCP10-51
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN BNC PLUG STR 50 OHM 1=100 / BNC Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp
Datasheet
VCP10-51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Cinch Connectivity Solutions
Series Connectapak™
Package Bulk
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-58
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polyoxymethylene (POM)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number VCP10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2111-VCP10-51,VCP1051,1427-1011-ND,1427-1011
Standard Package 1
Win Source Part Number 1188137-VCP10-51
Ultra Librarian 3D Model Ultra Librarian VCP10-51 CAD Model

Description

The Cinch Connectivity Solutions VCP10-51 is a plug male pin connector that falls under the category of coaxial connectors (RF).

  • Series: Connectapak™
  • Fastening Type: Bayonet Lock
  • Connector Style: BNC
  • Impedance: 50Ohm
  • Package: Bulk
  • Contact Termination: Crimp
  • Housing Color: Silver
  • Frequency Max: 4 GHz
  • Number of Ports: 1
  • Standard Package: 1 Connector
  • Insertion Loss: 0.2dB
  • Shield Termination: Crimp
  • Cable Group: RG-58
  • Temperature Range: -55°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4010
  • Includes: 3 pcs - 1 connector, 1 contact, and 1 ferrule
