Same model may have multiple batches, images only for reference.

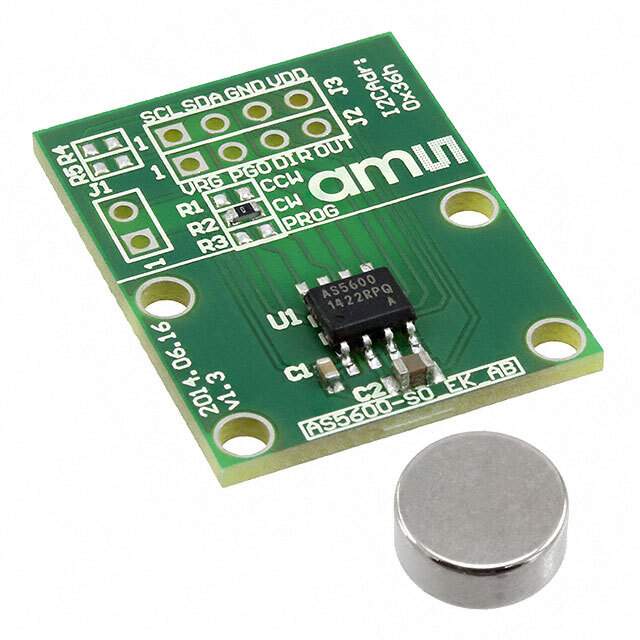

AS5600-SO_EK_AB Real Image
Same model may have multiple batches, images only for reference.

AS5600-SO_EK_AB

Part No AS5600-SO_EK_AB
Manufacturer ams
Catalog Evaluation Boards - Sensors
Description ADAPTER BOARD FOR AS5600 / AS5600 Angular and Linear Position Sensor Adapter Board
Datasheet
AS5600-SO_EK_AB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer ams
Sensor Type Magnetic, Rotary Position
Sensing Range 360°
Interface I2C
Operating Supply Voltage 3.3V, 5V
Supplied Contents Board(s)
Utilized IC / Part AS5600
Win Source Part Number 768827-AS5600-SO_EK_AB
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Family Name AS5600
Introduction Date June 26, 2014
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AS5600-SO_EK_AB CAD Model

Description

The ams AS5600-SO_EK_AB is a rotary position sensor development board designed by ams.

  • Sensor Type: Magnetic
  • Sensing Range: 360 degrees
  • IC: AS5600
  • Supply Voltage: 3.3V and 5V
  • Interface: I2C
  • Includes: Board(s)
  • Introduction Date: June 26, 2014
  • EOL Date (Estimated): 2025
  • Popularity: Medium
