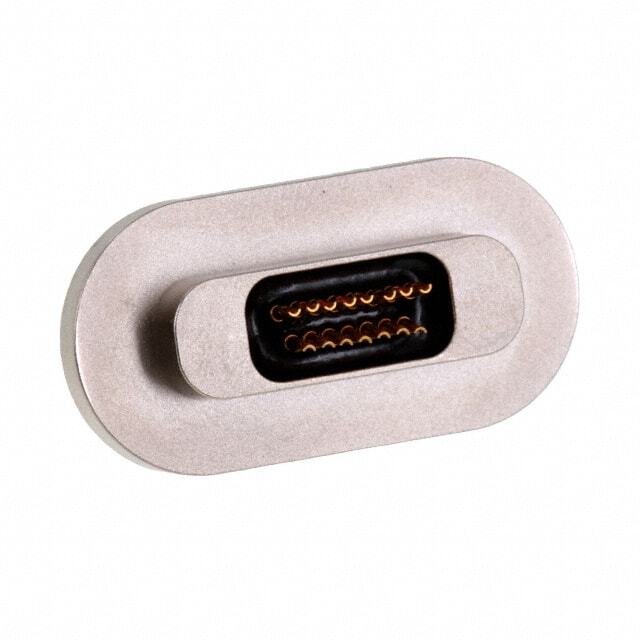

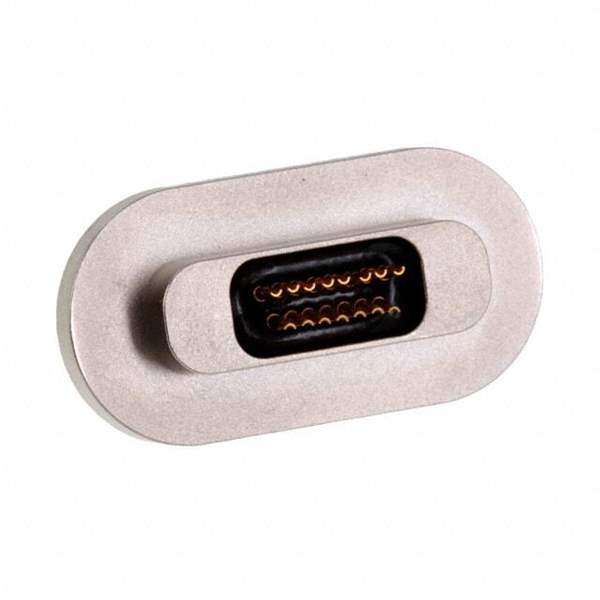

DCDH-15SSBN Cinch Connectivity Solutions
Same model may have multiple batches, images only for reference.

DCDH-15SSBN

Part No DCDH-15SSBN
Manufacturer Cinch Connectivity Solutions
Catalog D - SUB, D - SHAPED connectors
Datasheet
DCDH-15SSBN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Cinch Connectivity Solutions
Series Dura-Con™
Connector Style D-Type, Micro-D
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder Cup
Shell Material, Finish Aluminum Alloy, Nickel Plated, Electroless
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Ingress Protection Harsh Environment
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Contact Form Machined
Dielectric Material Diallyl Phthalate (DAP), Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number DCDH-15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1316031-DCDH-15SSBN
Ultra Librarian 3D Model Ultra Librarian DCDH-15SSBN CAD Model

Description

The Dura-Con™ series from Cinch Connectivity Solutions is a high-quality range of D-Sub Connectors.

  • Connector Type: Receptacle, Female Socket
  • Number of Positions: 15
  • Number of Rows: 2
  • Termination: Solder Cup
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Form: Machined
  • Shell Material: Aluminum Alloy
  • Shell Finish: Nickel (Electroless)
  • Voltage Rating: -
  • Ingress Protection: Harsh Environment
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Panel Mount
  • Operating Temperature: -55°C ~ 125°C
  • Base Product Number: DCDH-15
