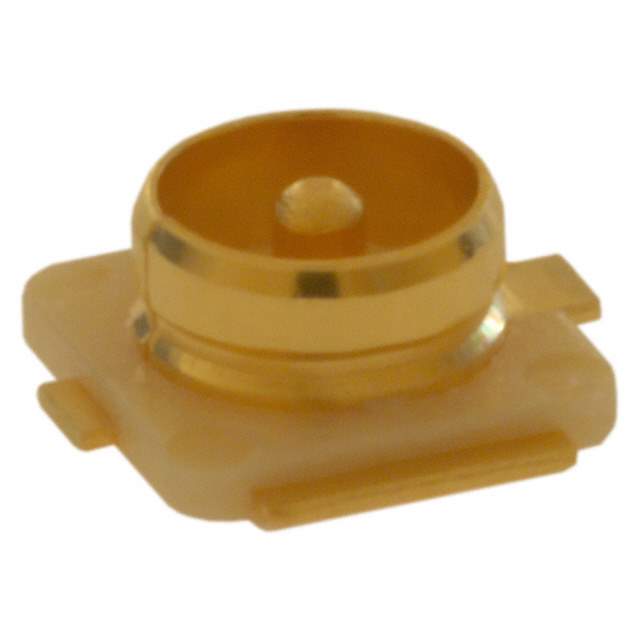

128-0711-201 Real Image
Same model may have multiple batches, images only for reference.

128-0711-201

Part No 128-0711-201
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN UMC JACK STR 50 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cinch Connectivity Solutions Johnson
Packaging Reel
Connector Style U.FL (UMCC)
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style SMD
Fastening Type Snap-On
Frequency - Max 6GHz
Number of Ports 1
Housing Color Gold
Body Finish Gold
Center Contact Plating Gold
Temperature Range - Operating -40°C ~ 90°C
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806413-128-0711-201
Ultra Librarian 3D Model Ultra Librarian 128-0711-201 CAD Model

Description

The Cinch Connectivity Solutions Johnson 806413-128-0711-201 is a U.FL (UMCC) jack male pin connector that is designed for use in various RF applications.

  • Fastening Type: Snap-On
  • Termination: Solder
  • Mounting: SMD
  • Frequency Range: Up to 6GHz
  • Impedance: 50Ohm
  • Temperature Range: -40°C to 90°C
  • Package: Reel
  • Manufacturer Pack Quantity: 2,500
