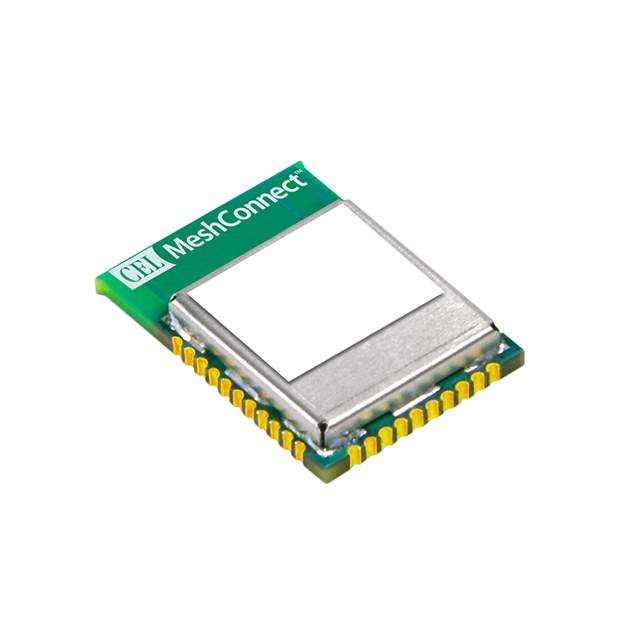

ZICM357SP2-2-R Real Image
Same model may have multiple batches, images only for reference.

ZICM357SP2-2-R

Part No ZICM357SP2-2-R
Manufacturer CEL
Catalog RF Receivers
Description RX TXRX MOD 802.15.4 TRC ANT SMD / 802.15.4 Zigbee® Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Datasheet
ZICM357SP2-2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr CEL
Series MRD
Package Tape & Reel
RF Family/Standard 802.15.4
Protocol Zigbee®
Frequency 2.4GHz
Data Rate 250kbps
Power - Output 20dBm
Sensitivity -103dBm
Serial Interfaces JTAG, SPI, UART
Antenna Type Integrated, Trace
Utilized IC / Part EM357
Memory Size 192kB Flash, 12kB SRAM
Voltage - Supply 2.1V ~ 3.6V
Current - Receiving 34mA
Current - Transmitting 58mA ~ 150mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number ZICM357
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1 CEL
HTSUS 8525.60.1050
Other Names ZICM357SP2-2-RDKR,ZICM357SP2-2-RTR,ZICM357SP2-2-RCT,ZICM357SP2-2-R-ND
Standard Package 600
Win Source Part Number 1182603-ZICM357SP2-2-R
Ultra Librarian 3D Model Ultra Librarian ZICM357SP2-2-R CAD Model

Description

The ZICM357SP2-2-R is an RF transceiver module that is perfect for various electronic applications.

  • Popularity: Medium
  • Supply and Demand: Limited
  • Frequency: 2.4GHz
  • Data Rate: 250kbps
  • Antenna Type: Integrated, Trace
  • Power Output: 20dBm
  • Sensitivity: -103dBm
  • Current Receiving: 34mA
