Same model may have multiple batches, images only for reference.

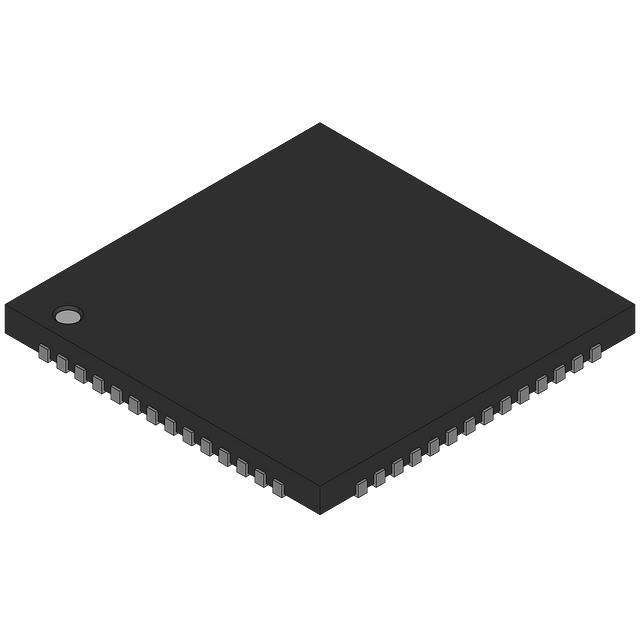

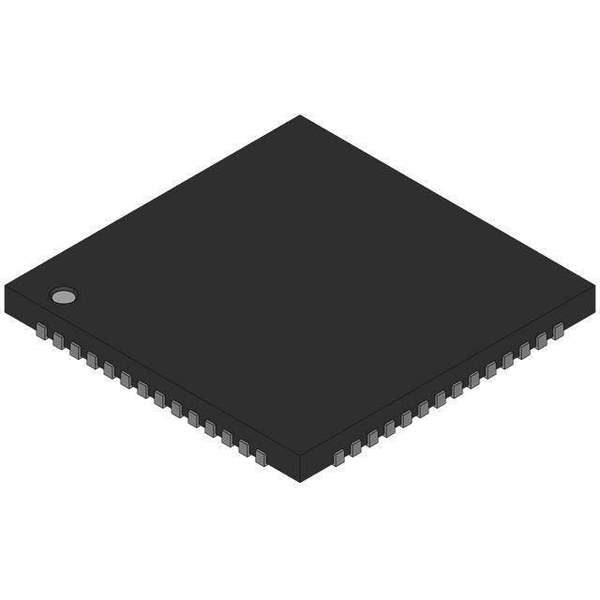

CYBL10163-56LQXI Real Image
Same model may have multiple batches, images only for reference.

CYBL10163-56LQXI

Part No CYBL10163-56LQXI
Manufacturer Cypress Semiconductor Corp
Catalog RF Receivers
Description MCU 32-Bit CYBL10X6X ARM Cortex M0 RISC 128KB Flash 1.8V/2.5V/3.3V/5V 56-Pin QFN EP Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package QFN
Core Architecture ARM
Current - Receiving 21.5 mA
Current - Transmitting 20 mA
Data Bus Width 32 b
Data Rate 1 Mbps
Frequency 2.4 GHz
Interface I2C, I2S, SPI, UART
Lead Free Lead Free
Max Frequency 48 MHz
Max Operating Temperature 105 °C
Max Supply Voltage 5.5 V
Memory Size 16 kB
Memory Type FLASH
Min Operating Temperature -40 °C
Min Supply Voltage 1.71 V
Mount Surface Mount
Number of GPIO 36
Number of Pins 56
Number of Programmable I/O 36
Number of Timers/Counters 4
RAM Size 16 kB
RoHS Compliant
Schedule B 8542310000, 8542310000
Sensitivity (dBm) -91 dBm
Watchdog Timer Yes
Win Source Part Number 1198141-CYBL10163-56LQXI
Categories RF Receivers
Manufacturer Cypress Semiconductor Corp
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CYBL10163-56LQXI CAD Model

Description

The CYBL10163-56LQXI is an RF Receiver IC from Cypress Semiconductor Corp. It supports a frequency of 2.4 GHz and a data rate of 1 Mbps.

  • Type: RF Receiver IC
  • Manufacturer: Cypress Semiconductor Corp
  • Frequency: 2.4 GHz
  • Data Rate: 1 Mbps
  • Memory Size: 16 kB
  • RAM Size: 16 kB
  • Interface: I2C, I2S, SPI, and UART
  • Sensitivity: -91 dBm
  • Voltage Range: 1.71V to 5.5V
  • Temperature Range: -40°C to 105°C
  • Compliance: Lead-free and RoHS compliant
