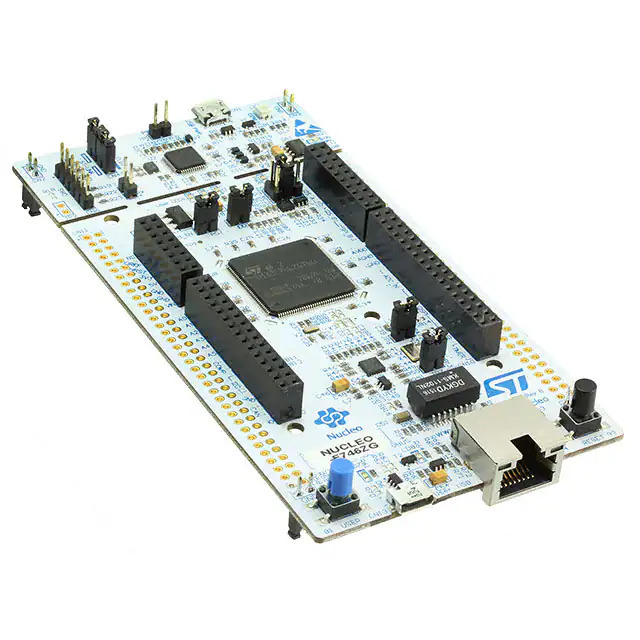

STMicroelectronics NUCLEO-F746ZG Development Board

The NUCLEO-F746ZG is a highly versatile development board from STMicroelectronics that allows users to leverage the capabilities of the STM32F746ZG microcontroller in their embedded projects. This board is part of the STM32 Nucleo series, designed to support users in a wide range of applications with a full range of hardware features.

At the heart of the NUCLEO-F746ZG is the STM32F746ZG microcontroller, which is based on the high-performance ARM Cortex-M7 32-bit RISC core operating at up to 216 MHz frequency. The microcontroller features a floating point unit (FPU) which supports all ARM single-precision data-processing instructions and data types. It also includes a high-speed embedded memory of 1 Mbyte of Flash memory and 320 Kbytes of SRAM, enhancing its performance in real-time applications.

The development board includes an ST-LINK/V2-1 debugger/programmer with SWD connector, which facilitates the programming and debugging of the onboard MCU. The NUCLEO-F746ZG also provides an easy-to-use interface for connecting additional shields and modules, thanks to its Arduino Uno V3 connectivity and ST morpho headers. This makes it an ideal choice for rapid prototyping and the development of applications ranging from robotics to industrial control systems.

Additional features of the NUCLEO-F746ZG include a comprehensive set of peripherals such as Ethernet, USB OTG full-speed and high-speed, I2S audio DAC, motor control PWM, and various timers. The board is also equipped with a range of embedded sensors and connections for further expansion, providing developers with the flexibility to add their own sensors and actuators.

STMicroelectronics provides extensive support for the NUCLEO-F746ZG through their software HAL library, as well as a range of software examples. The development board is compatible with major Integrated Development Environments (IDEs) like IAR, Keil, and GCC-based IDEs, which makes it accessible for developers of all skill levels.

Whether you are a professional engineer or a hobbyist, the NUCLEO-F746ZG is a powerful and cost-effective solution for developing and prototyping a wide variety of applications that require high-speed processing and a rich set of peripherals.
