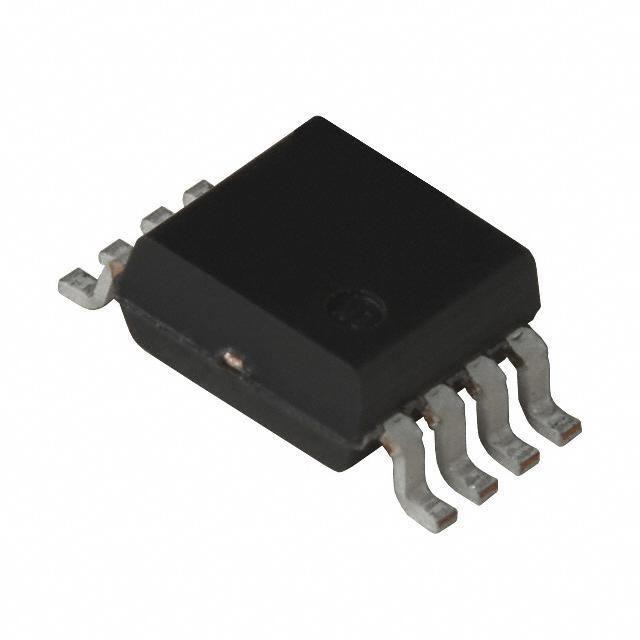

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr CEL
Package Tape & Reel
Product Status Obsolete
Function Prescaler
Frequency 500MHz ~ 3GHz
RF Type Broadcast Television, DBS, UHF
Secondary Attributes Divide by 2
Mounting Type Surface Mount
Package / Case 8-SSOP (0.126", 3.20mm Width)
Supplier Device Package 8-SSOP
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 389737-UPB1508GV-E1
Ultra Librarian 3D Model Ultra Librarian UPB1508GV-E1 CAD Model

Description

The UPB1508GV-E1 is a prescaler integrated circuit designed for RF applications.

  • It operates in the frequency range of 500MHz to 3GHz, making it suitable for use in broadcast television, DBS, and UHF systems.
  • The UPB1508GV-E1 divides the input frequency by 2, providing an output signal @ half the frequency.
  • It is surface mountable and supplied in an 8-SSOP package, allowing for easy installation.
  • With its wide frequency range and reliable performance, the UPB1508GV-E1 is an ideal choice for RF applications.
  • Please note that this product is obsolete and may not be readily available in the market.
