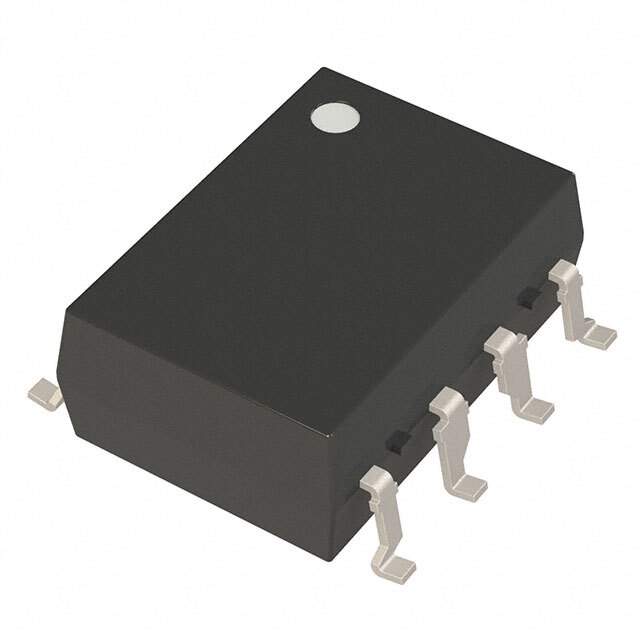

PS9687L2-V-E3 Real Image
Same model may have multiple batches, images only for reference.

PS9687L2-V-E3

Part No PS9687L2-V-E3
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLL 8SMD GW
Datasheet
PS9687L2-V-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 25mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.65V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SMD Gull Wing
Win Source Part Number 210253-PS9687L2-V-E3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS9687L2-V-E3 CAD Model

Description

The CEL PS9687L2-V-E3 is an open collector output type isolator with a data rate of 10Mbps.

  • Forward Voltage: 1.65V
  • Input: DC
  • Channel: one channel with one input on side 1 and no input on side 2
  • Common Mode Transient Immunity: 10kV/μs
  • Propagation Delay: 75ns (Max)
  • Isolation Voltage: 5000Vrms
  • Package: 8-SMD Gull Wing
  • Supply Voltage: 4.5V to 5.5V
  • Rise and Fall Time: 20ns and 10ns respectively
  • Channel Output Current: 25mA
  • Continuous Forward Current: 30mA
  • Ideal for: use in isolators
