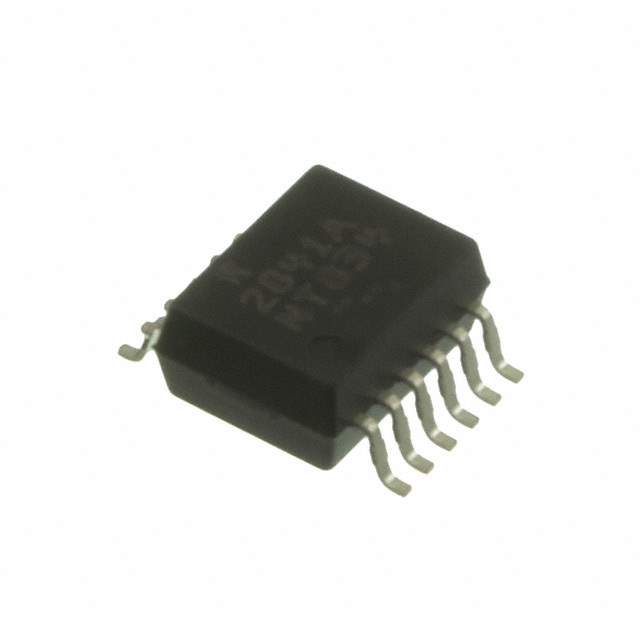

PS2841-4A-AX Real Image
Same model may have multiple batches, images only for reference.

PS2841-4A-AX

Part No PS2841-4A-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 1.5KV 4CH TRANS 12BSOP / Optocoupler DC-IN 4-CH Transistor
Datasheet
PS2841-4A-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Cut Strip
Number of Channels 4
Voltage - Isolation 1500Vrms
Current Transfer Ratio (Minimum) 100% @ 1mA
Current Transfer Ratio (Maximum) 400% @ 1mA
Rise / Fall Time (Typ) 20μs, 110μs
Input Type DC
Output Type Transistor
Output Voltage MAX 70V
Output Current per Channel 20mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Maximum) 20mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 12-BSOP (0.173", 4.40mm Width)
Manufacturer Package 12-SSOP
Win Source Part Number 792524-PS2841-4A-AX
Popularity Medium
Supply and Demand Status Limited
Family Name PS2841-4A-AX
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Japan, Taiwan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS2841-4A-AX CAD Model

Description

The CEL NEPOC PS2841-4A-AX is a transistor output type electronic component that has a 1500Vrms voltage isolation.

  • Turn on/off time: Typ
  • Rise/Fall Time: 20μs, 110μs
  • Operating Temperature: -40°C ~ 100°C
