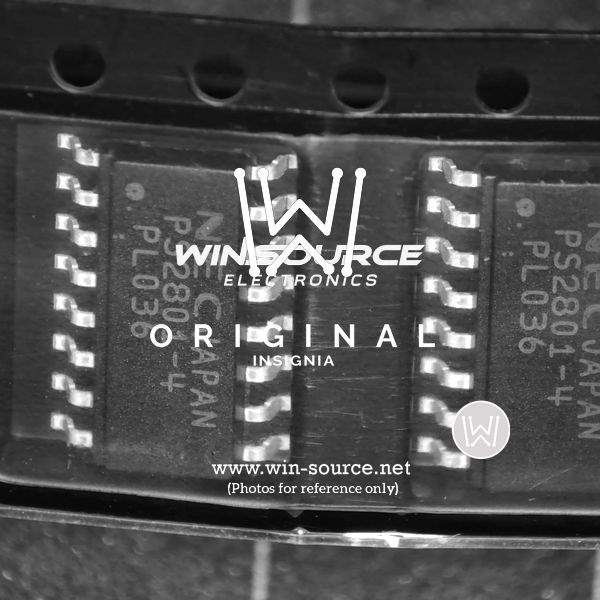

PS2801-4-F3-A Real Image PS2801-4-F3-A Real Image1 PS2801-4-F3-A Real Image2
Same model may have multiple batches, images only for reference.
PS2801-4-F3-A Real Image PS2801-4-F3-A Real Image1 PS2801-4-F3-A Real Image2
PS2801-4-F3-A Real Image PS2801-4-F3-A Real Image1 PS2801-4-F3-A Real Image2
Same model may have multiple batches, images only for reference.

PS2801-4-F3-A

Part No PS2801-4-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 2.5KV 4CH TRANS 16-SSOP
Datasheet
PS2801-4-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 4
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Switching Turn-On and Turn-Off Time 6μs, 5μs
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 16-SSOP
Win Source Part Number 026889-PS2801-4-F3-A
Family Name PS2801-4-F3-A
Introduction Date December 10, 2001
ECCN EAR99
Country of Origin Japan, Taiwan
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS2801-4-F3-A CAD Model

Description

The PS2801-4-F3-A is a transistor output optocoupler manufactured by CEL.

  • Channels: Four
  • Minimum DC Current Transfer Ratio: 80% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Switching Turn-On Time: 6μs
  • Switching Turn-Off Time: 5μs
  • Rise Time: 3μs
  • Fall Time: 5μs
  • Isolation Voltage: 2500Vrms
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 50mA
  • Popularity: High
  • Supply and Demand Status: Limited
  • Usage: Provide electrical isolation between two circuits
