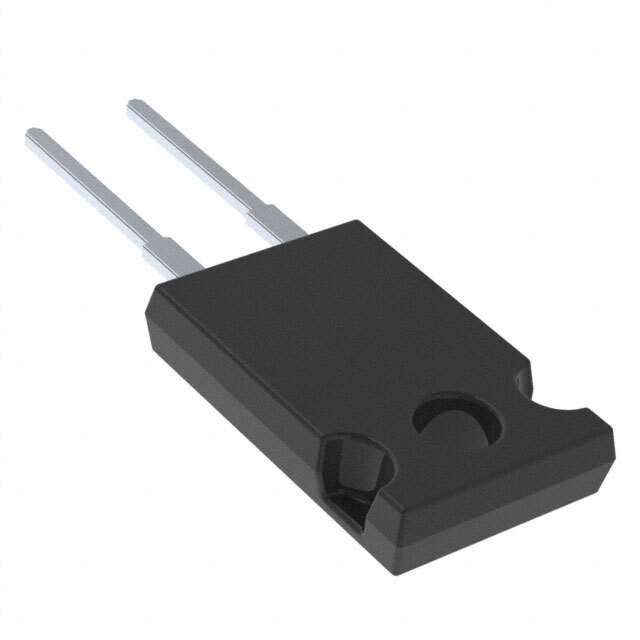

Same model may have multiple batches, images only for reference.

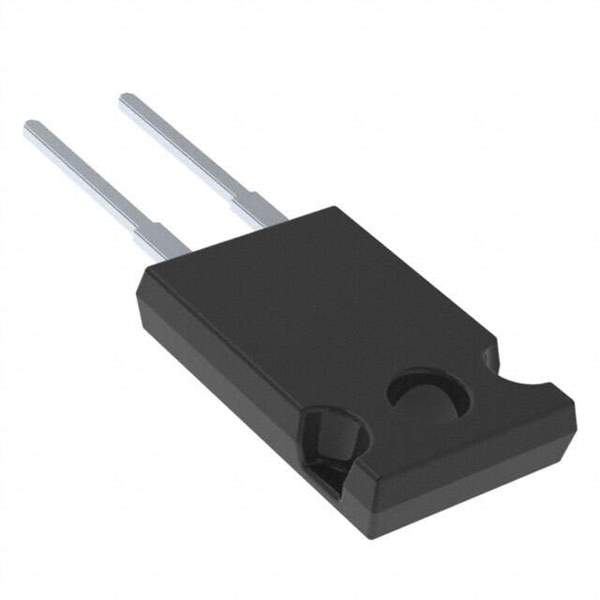

MP850-20.0-1% Real Image
Same model may have multiple batches, images only for reference.

MP850-20.0-1%

Part No MP850-20.0-1%
Manufacturer Caddock Electronics Inc.
Catalog Through Hole Resistors
Description RES 20 OHM 1% 50W TO220 / 20 Ohms ±1% 50W Through Hole Resistor TO-220-2 Full Pack Moisture Resistant, Non-Inductive Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Caddock Electronics Inc.
Series Kool-Pak®MP800
Package Tube
Resistance 20 Ohms
Tolerance ±1%
Power (Watts) 50W
Composition Thick Film
Features Moisture Resistant, Non-Inductive
Temperature Coefficient -20/ +50ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220
Dimension 0.410" L x 0.125" W (10.41mm x 3.18mm)
Height - Seated (Max) 0.650" (16.52mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names REFMP850-20.0-1%,MP850-20.0-F,MP850-20.0-1%-ND
Standard Package 50
Win Source Part Number 1138846-MP850-20.0-1%
Ultra Librarian 3D Model Ultra Librarian MP850-20.0-1% CAD Model

Description

The Kool-Pak®MP800 MP850-20.0-1% resistor is a through hole resistor with a resistance of 20 Ohms and a power rating of 50W.

  • Resistance: 20 Ohms
  • Power Rating: 50W
  • Tolerance: ±1%
  • Temperature Coefficient: -20/ +50ppm/°C
  • Type: Thick Film, Moisture Resistant, Non-Inductive
  • Package: Tube
  • Standard Package: 50
  • Dimensions: 0.410" L x 0.125" W (10.41mm x 3.18mm)
  • Height: 0.650" (16.52mm)
  • Manufacturer: Caddock Electronics Inc.
