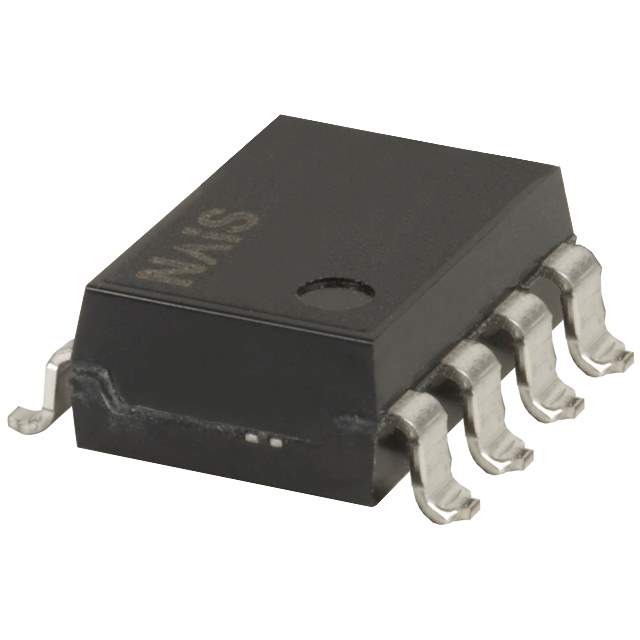

AQW254AZ Real Image
Same model may have multiple batches, images only for reference.

AQW254AZ

Part No AQW254AZ
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO AC/DC 400V 120MA 8SMD / Solid State Relay 50mA 1.5V DC-IN 0.16A 320V AC/DC-OUT 8-Pin PDIP SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQW
Packaging Reel package
Circuit DPST (2 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 16 Ohm
Load Current 120mA
Voltage - Input 1.14VDC
Voltage - Load 0 ~ 400 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-SMD
Relay Type Relay
Win Source Part Number 768756-AQW254AZ
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name AQW254
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQW254AZ CAD Model

Description

The AQW254AZ by Panasonic Electric Works is a PhotoMOS AQW series relay used in electronic circuits.

  • Circuit: DPST (2 Form A)
  • Packaging: Reel
  • Quantity per package: 1k pcs
  • Voltage Input: 1.14VDC
  • Output Type: AC, DC
  • Load Current: 120mA
  • Voltage Load: 0 ~ 400V
  • On-State Resistance (Maximum): 16 ohms
  • Package: 8-SMD (0.300", 7.62mm)
