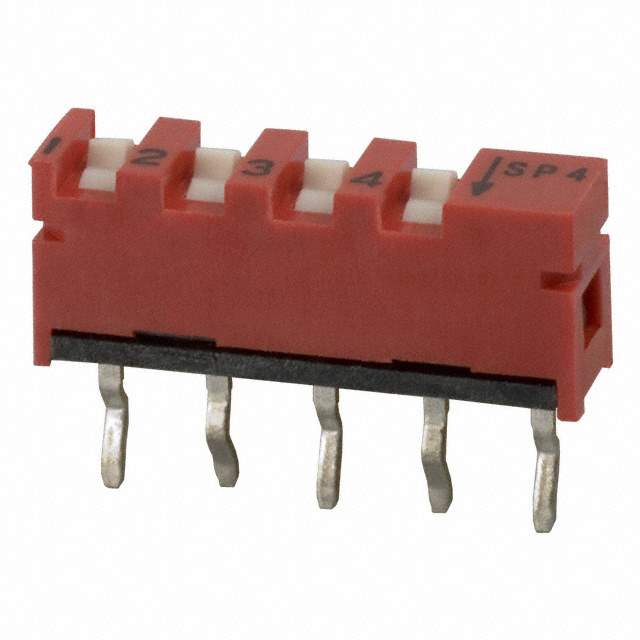

SP04B Real Image
Same model may have multiple batches, images only for reference.

SP04B

Part No SP04B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V / Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 10mA 20VDC
Datasheet
SP04B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 4
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.196" (4.99mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.498" (12.65mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names 2266-SP04B,*SP04B,CKN9144
Standard Package 35
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233695-SP04B
Ultra Librarian 3D Model Ultra Librarian SP04B CAD Model

Description

The SP04B is a DIP switch from C&K. It has 4 positions and a pitch of 0.100 inches (2.54mm). The termination style is PC Pin, and the contact finish is gold. It has a voltage rating of 20VDC and a current rating of 10mA. The SP04B is a part of the Switches>DIP Switches category and is part of the SP series. It has a standard package of 35 and is made of Polyphenylene Sulfide (PPS).
