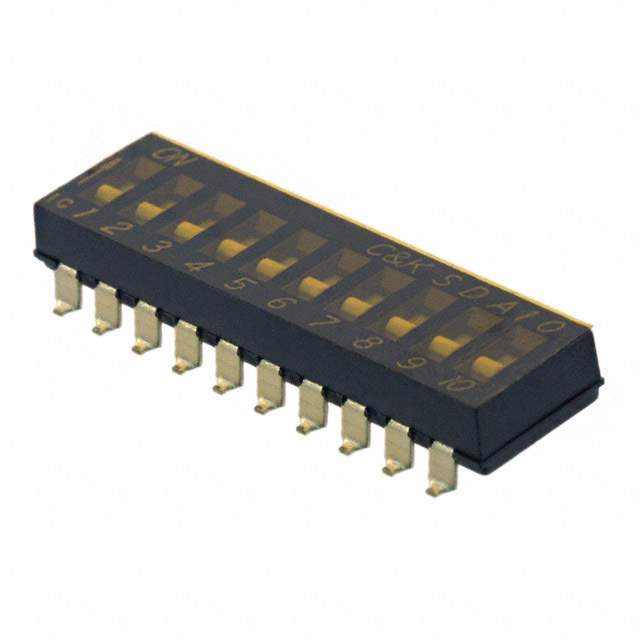

SDA10H0SBR Real Image
Same model may have multiple batches, images only for reference.

SDA10H0SBR

Part No SDA10H0SBR
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA10H0SBR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tape & Reel
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.076" (27.34mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA10H
Other Names *SDA10H0SBR,CKN9499CT,2266-SDA10H0SBR,CKN9499DKR,CKN9499TR
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233789-SDA10H0SBR
Ultra Librarian 3D Model Ultra Librarian SDA10H0SBR CAD Model

Description

The SDA series DIP switch from C&K is ideal for use in various electronic applications.

  • Series: SDA
  • Pitch: 0.100" (2.54mm)
  • Positions: 10
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Package: Tape and Reel
  • Mounting: Surface Mount (SMD)
  • Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Actuator Level: Flush or Recessed
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
