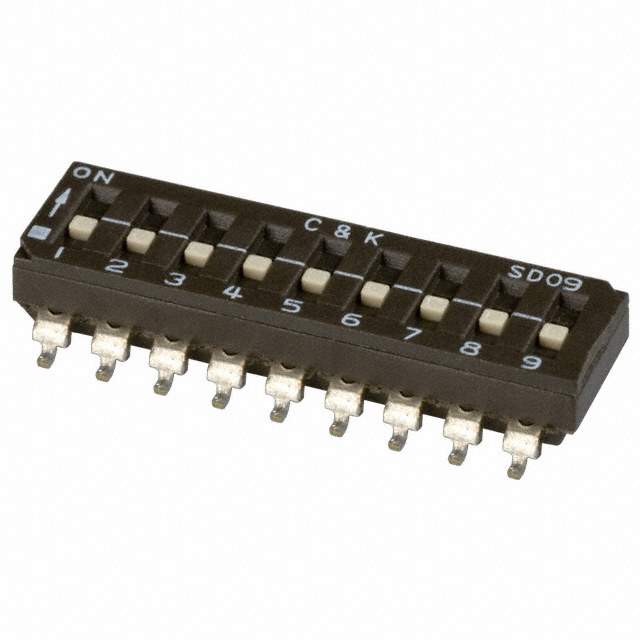

SD09H0SB Real Image
Same model may have multiple batches, images only for reference.

SD09H0SB

Part No SD09H0SB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 9 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD09H0SB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 9
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.958" (24.33mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD09H0
Other Names CKN6132,*SD09H0SB
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233804-SD09H0SB
Ultra Librarian 3D Model Ultra Librarian SD09H0SB CAD Model

Description

This electronic component is a DIP switch manufactured by C&K.

  • Series: SD
  • Number of Positions: 9
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull Wing
  • Seal: Tape
  • Contact Finish: Gold
  • Package: Tube
  • Contact Material: Beryllium Copper
  • Voltage Rating: 25VDC
  • Height Above Board: 0.170" (4.33mm)
  • Length: 0.958" (24.33mm)
  • Standard Package: 20
  • Mounting: SMD (SMT)
  • Body Material: Polyphthalamide (PPA)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Washable: Yes
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Current Rating: 100mA
  • REACH: Unaffected
  • HTSUS: 8536.50.9065
  • Base Product Number: SD09H0
  • Alternative Part Numbers: CKN6132 and *SD09H0SB
