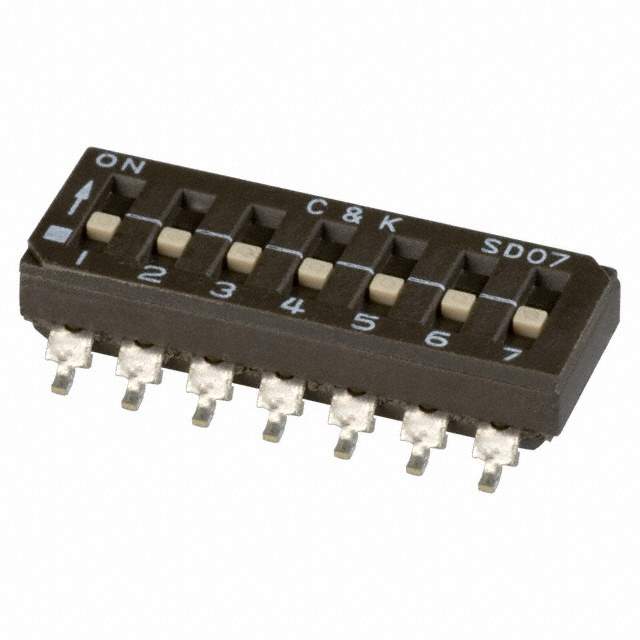

SD07H0SK Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 7
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.758" (19.25mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Other Names *SD07H0SK,CKN3059,SD07HOSK
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233793-SD07H0SK
Ultra Librarian 3D Model Ultra Librarian SD07H0SK CAD Model

Description

The SD series DIP switch from C&K is a 7-position, SPST circuit, slide actuator type switch that is used for printed circuit board (PCB) mounting.

  • Series: SD
  • Positions: 7
  • Circuit: SPST
  • Actuator Type: Slide
  • Mounting: PCB
  • Pitch: 0.100 inches (2.54mm)
  • Voltage Rating: 25VDC
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Material: Polyphthalamide (PPA)
  • Height Above Board: 0.170 inches (4.33mm)
  • Mechanical Life: 2,000 cycles
  • Electrical Life: 2,000 cycles
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
