Same model may have multiple batches, images only for reference.

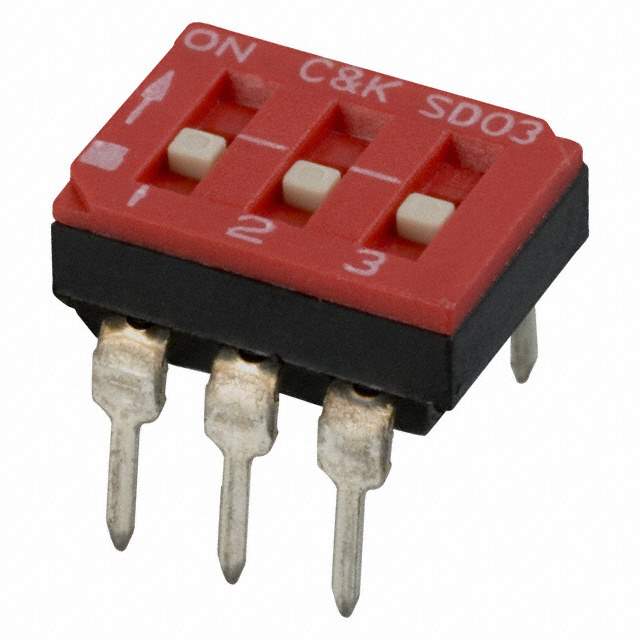

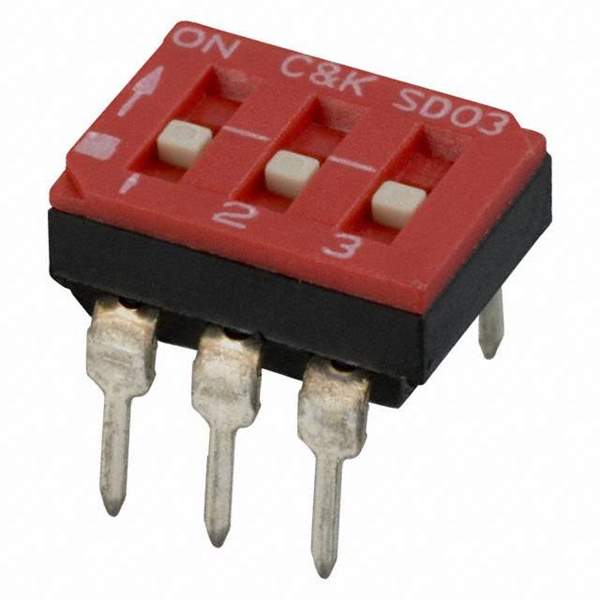

SD03H0K Real Image
Same model may have multiple batches, images only for reference.

SD03H0K

Part No SD03H0K
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD03H0K Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 3
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.178" (4.52mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.358" (9.09mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Other Names CKN3065,*SD03H0K,SD03HOK
Standard Package 60
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233796-SD03H0K
Ultra Librarian 3D Model Ultra Librarian SD03H0K CAD Model

Description

The SD03H0K is a SPST through hole slide (standard) actuator DIP switch from C&K.

  • Number of Positions: 3
  • Pitch: 0.100" (2.54mm), full
  • Contact Finish: Gold
  • Voltage Rating: 25VDC
  • Height Above Board: 0.178" (4.52mm)
  • Length: 0.358" (9.09mm)
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Washable: Yes
  • Actuator Level: Flush, Recessed
  • Operating Temperature Range: -40°C to 85°C
  • Series: SD
  • Package: Tube
  • Standard Package: 60
  • REACH: Unaffected
  • ECCN: EAR99
  • Product Status: Obsolete
  • RoHS Compliant: No
