Same model may have multiple batches, images only for reference.

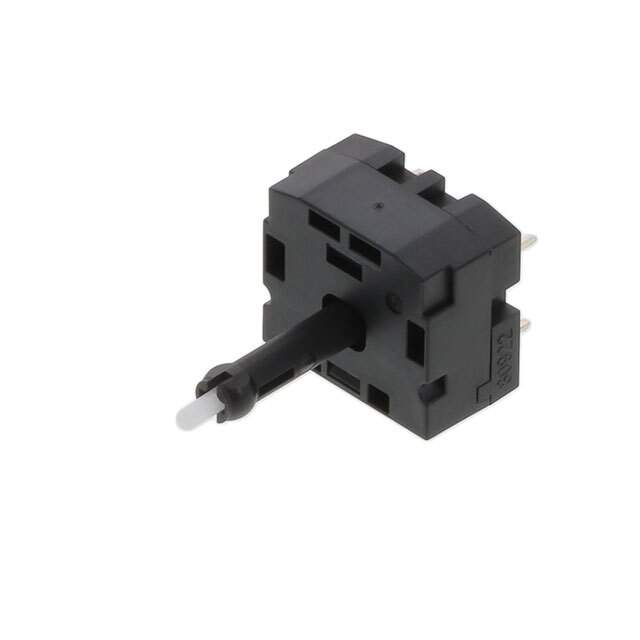

SAM-H2-MR14SPA Real Image
Same model may have multiple batches, images only for reference.

SAM-H2-MR14SPA

Part No SAM-H2-MR14SPA
Manufacturer C&K Components
Catalog Navigation Switches, Joystick
Description NAVIGATIONAL SWITCH, HIGH CURREN  /  Navigation Switch, 1 - Axis Digital (Mechanical Switch) Output
Datasheet
SAM-H2-MR14SPA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Navigation Switches, Joystick
Mfr C&K
Series SAM
Package Tray
Type Navigation Switch, 1 - Axis
Actuator Type Plunger for Cap
Switch Function 2-Way Directional
Output Digital (Mechanical Switch)
Current Rating (Amps) 15A (DC)
Voltage Rating - DC 14 V
Contact Material Silver Alloy
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Ingress Protection IP30
Mechanical Life 30,000 Cycles
Electrical Life 30,000 Cycles
Operating Force 540gf
Base Product Number SAM-H2
Other Names 2266-SAM-H2-MR14SPA,CKN12089
Standard Package 1,080
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233404-SAM-H2-MR14SPA
Ultra Librarian 3D Model Ultra Librarian SAM-H2-MR14SPA CAD Model

Description

The SAM-H2-MR14SPA navigation switch is a high-quality switch from C&K.

  • Function: 1-axis navigation switch
  • Actuator Type: Plunger for Cap
  • Switch Function: 2-way directional
  • Output: Digital
  • Termination Style: PC pin
  • Voltage Rating: 14 VDC
  • Operating Force: 540gf
  • Mechanical Life: 30,000 cycles
  • Current Rating: 15A DC
  • Ingress Protection: IP30
  • Temperature Range: -40°C to 85°C
  • Package: Tray
  • Standard Package: 1,080
