Part No PTS526 SMG15 SMTR2 LFS
Manufacturer C&K Components
Catalog Tactile Switches

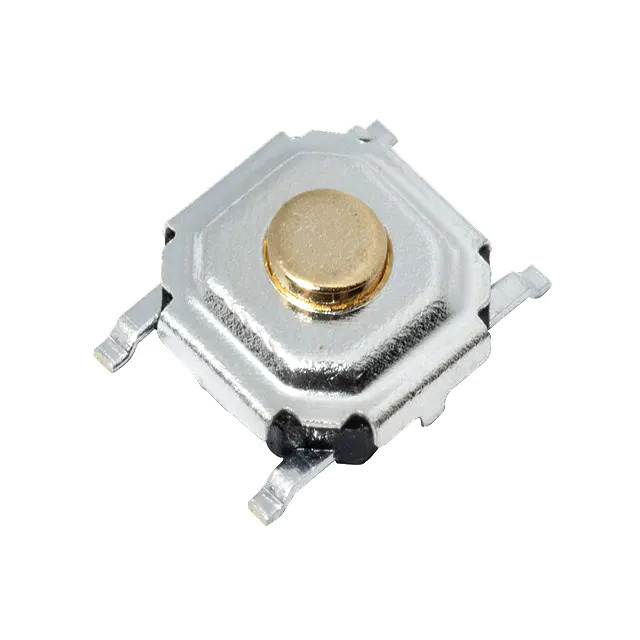

Description TACT 5.2 X 5.2, 1.5 MM H, 160GF, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
PTS526 SMG15 SMTR2 LFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K
Series PTS526
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.50mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 5.20mm x 5.20mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection IP40
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material -
Switch Travel 0.25mm
Mechanical Life 500,000 Cycles
Base Product Number PTS526
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376474-PTS526 SMG15 SMTR2 LFS
Ultra Librarian 3D Model Ultra Librarian PTS526 SMG15 SMTR2 LFS CAD Model

Description

The PTS526 SMG15 SMTR2 LFS is a tactile switch manufactured by C&K.

  • Series: PTS526
  • Mounting Type: Surface mount
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom (Momentary)
  • Actuator Height: 1.50mm
  • Operating Force: 160gf
  • Product Category: Tactile Switches
  • Mechanical Life: 500,000 cycles
