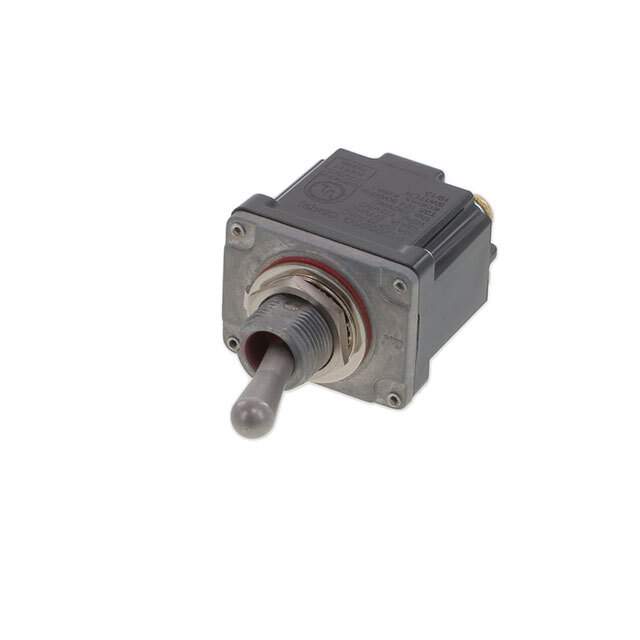

PT208SSQ Real Image
Same model may have multiple batches, images only for reference.

PT208SSQ

Part No PT208SSQ
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH PT208S TOGGLE / Toggle Switch DPDT Panel Mount
Datasheet
PT208SSQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series PT
Package Tray
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC/DC)
Voltage Rating - AC 277 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 17.20mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Stainless Steel
Electrical Life 10,000 Cycles
Base Product Number PT208S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN12204,2266-PT208SSQ
Standard Package 20
Win Source Part Number 988952-PT208SSQ
Ultra Librarian 3D Model Ultra Librarian PT208SSQ CAD Model

Description

The PT208SSQ toggle switch is a high-quality, reliable component that is designed for use in a wide range of applications.

  • Series: PT
  • Circuit Configuration: DPDT
  • Termination Style: Screw Terminal
  • Packaging: Tray
  • Ingress Protection: IP66/IP68
  • Voltage Rating: 277 V AC and 28 V DC
  • Current Rating: 10A (AC/DC)
  • Panel Cutout Dimensions: Circular, 12.40mm Diameter
  • Actuator Material: Stainless Steel
  • Actuator Type: Standard Round
  • Actuator Length: 17.20mm
  • Illumination Type: Non-Illuminated
  • Bushing Thread: 15/32-32
  • Mounting Type: Panel Mount
  • Operating Temperature Range: -40°C to 85°C
