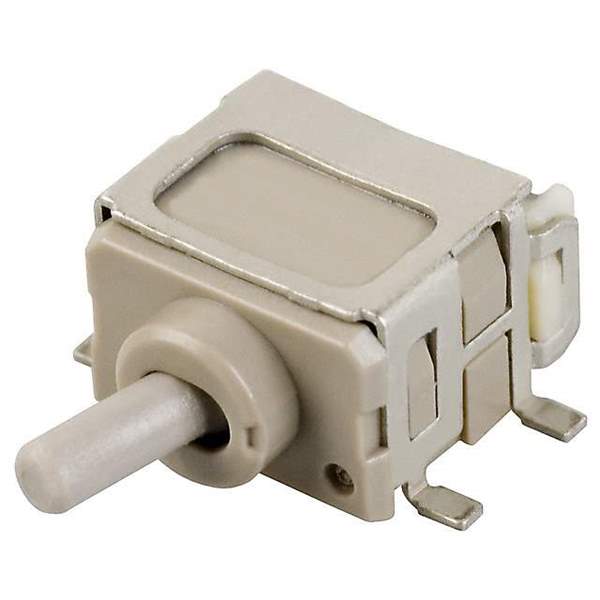

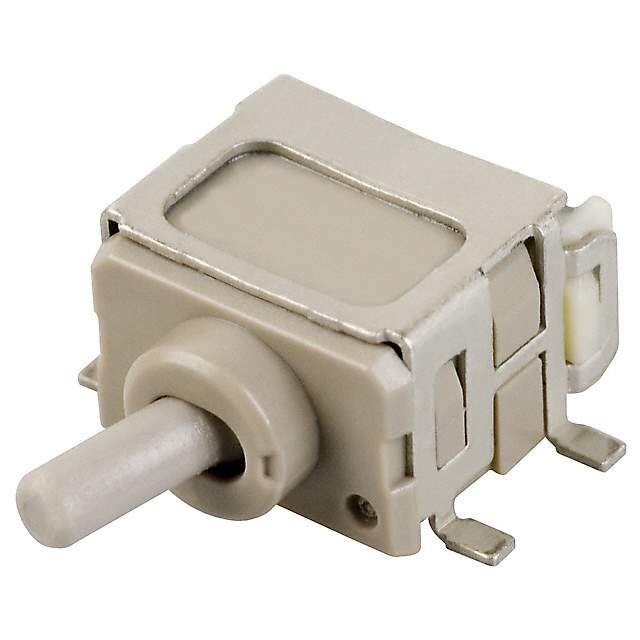

G3T12AH-R Real Image
Same model may have multiple batches, images only for reference.

G3T12AH-R

Part No G3T12AH-R
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 28V / Ultra-Miniature Process Sealed SMT Toggles
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer NKK Switches
Packaging Reel
Mounting Style Surface Mount, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28V
Voltage Rating - DC 28V
Actuator Type Standard Round
Actuator Length 3.81mm
Illumination Non-Illuminated
Termination Style Gull Wing
Bushing Thread Unthreaded
Features Process Sealed
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyphenylene Sulfide (PPS)
Electrical Life 50,000 Cycles
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809039-G3T12AH-R
Ultra Librarian 3D Model Ultra Librarian G3T12AH-R CAD Model

Description

The 809039-G3T12AH-R is a switch component that comes in a reel package.

  • Package: Reel
  • Features: Process Sealing
  • Mounting Type: Surface Mount, Right Angle
  • Electrical Life Cycle: Various
