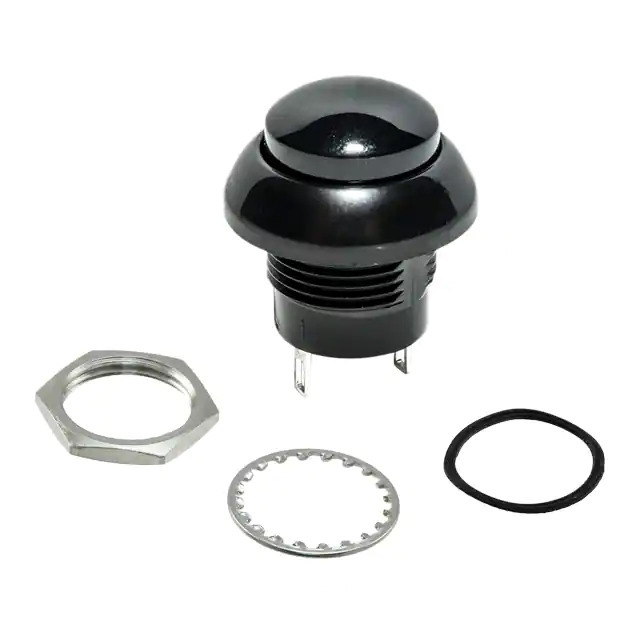

Same model may have multiple batches, images only for reference.
PNP8E2D2Y03QE C&K Components
Same model may have multiple batches, images only for reference.

PNP8E2D2Y03QE

Part No PNP8E2D2Y03QE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPST-NO 5A 32V
Datasheet
PNP8E2D2Y03QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series PNP
Package Bulk
Product Status Active
Mounting Type Panel Mount, Front
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (DC)
Voltage Rating - DC 32 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Ingress Protection IP68 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 12.30mm Dia
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number PNP8E
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376062-PNP8E2D2Y03QE
Ultra Librarian 3D Model Ultra Librarian PNP8E2D2Y03QE CAD Model

Description

The PNP8E2D2Y03QE is a pushbutton switch from the PNP series manufactured by C&K.

  • Mounting Type: Panel Mount, Front Mount
  • Current Rating: 5A (DC)
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Voltage Rating: 32V (DC)
  • Actuator Type: Round Button
  • Termination Style: Solder Lug
  • Temperature Range: -40°C to 85°C
  • Mechanical Life: 1,000,000 cycles
  • Ingress Protection: IP68 (Dust Tight and Waterproof)
