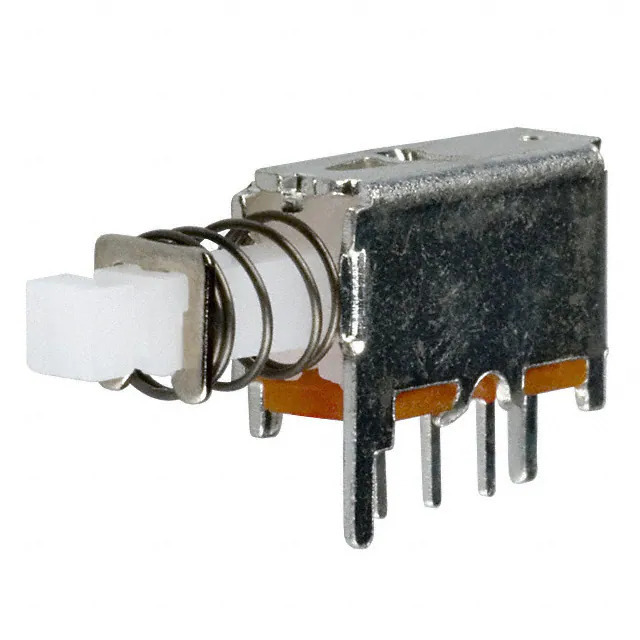

PN11SHNA03QE C&K Components
Same model may have multiple batches, images only for reference.

PN11SHNA03QE

Part No PN11SHNA03QE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.2A 30V
Datasheet
PN11SHNA03QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series PN
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Epoxy Sealed Terminals
Panel Cutout Dimensions -
Temperature Range - Operating -10°C ~ 60°C
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number PN11SHNA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376204-PN11SHNA03QE
Ultra Librarian 3D Model Ultra Librarian PN11SHNA03QE CAD Model

Description

The PN11SHNA03QE is a pushbutton switch manufactured by C&K.

  • Series: PN
  • Mounting: Through-hole, right-angle
  • Current Rating (DC): 200mA
  • Operating Temperature: -10°C to 60°C
  • Terminals: Epoxy sealed
  • Circuit Configuration: SPDT
  • Voltage Rating: 30V DC
  • Actuator Type: Plunger for cap
  • Color: Black
  • Mechanical Life: 10,000 cycles
  • Electrical Life: 10,000 cycles
