Same model may have multiple batches, images only for reference.

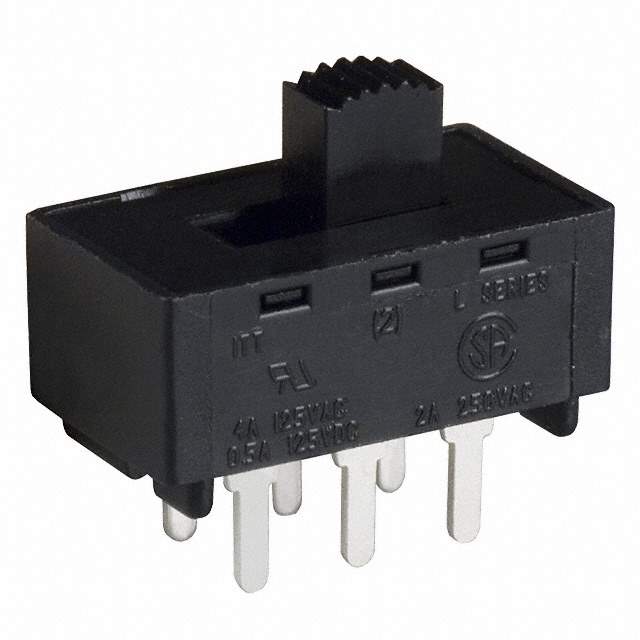

L202011MS02Q Real Image
Same model may have multiple batches, images only for reference.

L202011MS02Q

Part No L202011MS02Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 4A 125V  /  Slide Switch DPDT Through Hole
Datasheet
L202011MS02Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series L
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 3.81mm
Electrical Life 10,000 Cycles
Base Product Number L202011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names CKC5100,*L202011MS02Q
Standard Package 1
Win Source Part Number 1021490-L202011MS02Q
Ultra Librarian 3D Model Ultra Librarian L202011MS02Q CAD Model

Description

The C&K L202011MS02Q slide switch is a high-quality switch that is ideal for a wide range of applications.

  • Product Name: L202011MS02Q
  • Circuit: DPDT
  • Switch Function: On-On
  • Package: Standard
  • Mounting Type: Through-Hole
  • Voltage Rating (AC): 125 V
  • Voltage Rating (DC): 28 V
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Temperature Range: -30°C to 65°C
  • REACH: Unaffected
