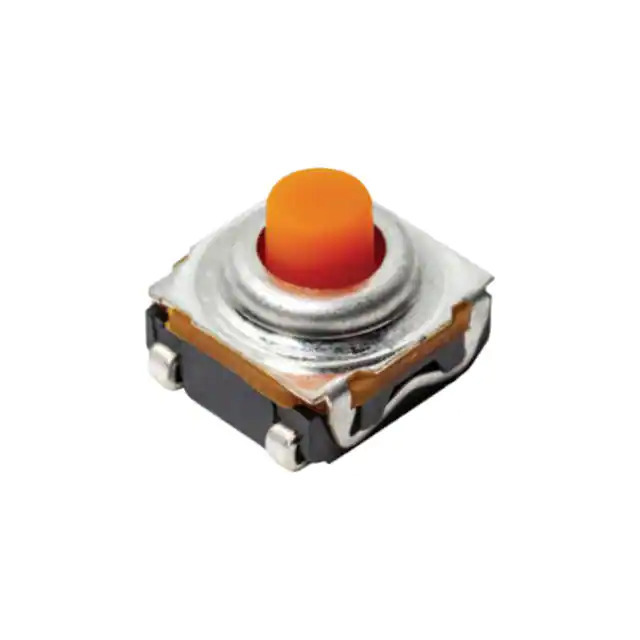

KSC442G 70SH LFS PF C&K Components
Same model may have multiple batches, images only for reference.

KSC442G 70SH LFS PF

Part No KSC442G 70SH LFS PF
Manufacturer C&K Components
Catalog Tactile Switches
Description TACT 6.2 X 6.2, 5.1 MM H, 4.0N, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
KSC442G 70SH LFS PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K
Series KSC-PF
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.20mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 408gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Silicon Rubber
Switch Travel 0.75mm
Mechanical Life 1,000,000 Cycles
Base Product Number KSC442
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376553-KSC442G 70SH LFS PF
Ultra Librarian 3D Model Ultra Librarian KSC442G 70SH LFS PF CAD Model

Description

The KSC442G 70SH LFS PF is a tactile switch manufactured by C&K.

  • Mounting Type: Surface Mount
  • Termination Style: Gull-Wing
  • Mechanical Life: 1,000,000 cycles
  • Circuit Configuration: SPST-NO
  • Actuator Type: Standard
  • Switch Function: Off-Mom
  • Operating Force: 408gf
  • Actuator Height off the PCB: 5.20mm
  • Illumination: Non-Illuminated
  • Outline Dimension: 6.20mm x 6.20mm
  • Ingress Protection: IP67
  • Contact Rating: 0.05A @ 32VDC
