Same model may have multiple batches, images only for reference.

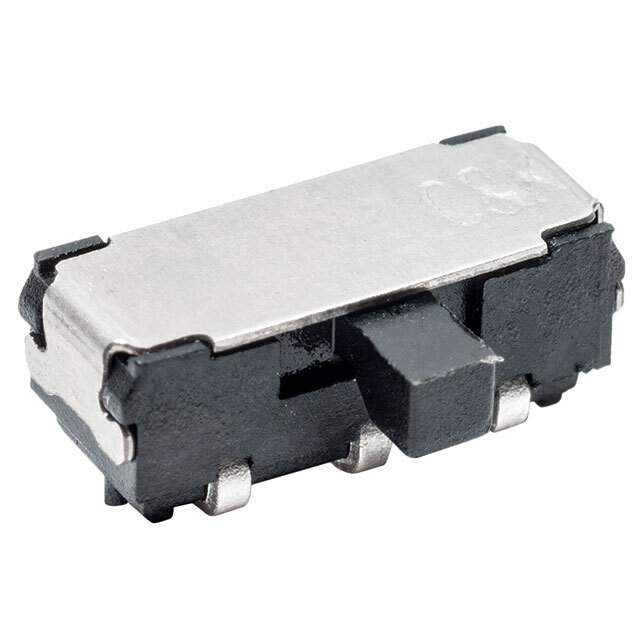

JS202011JAQN Real Image
Same model may have multiple batches, images only for reference.

JS202011JAQN

Part No JS202011JAQN
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 6V / Slide Switch DPDT Surface Mount, Right Angle
Datasheet
JS202011JAQN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Manufacturer C&K
Packaging Reel - TR
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 6 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Surface Mount, Right Angle
Termination Style J Lead
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.00mm
Electrical Life 5,000 Cycles
Base Product Number JS202011
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Part Number *JS202011JAQN,CKN10722TR,CKN10722DKR,CKN10722CT
Standard Package 1,000
Win Source Part Number 1323813-JS202011JAQN
Ultra Librarian 3D Model Ultra Librarian JS202011JAQN CAD Model

Description

The JS202011JAQN slide switch is a DPDT circuit switch that functions as On-On.

  • Actuator Type: Standard
  • Actuator Length: 2.00mm
  • Switch Travel: 2.00mm
  • DC Voltage Rating: 6V
  • Current Rating: 300mA
  • Mounting: Surface Mount, Right Angle
  • Temperature Range: -40°C to 85°C
  • Packaging: Reel - TR
  • Standard Package: 1,000
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Actuator Material: Polyamide (PA46), Nylon 4/6
