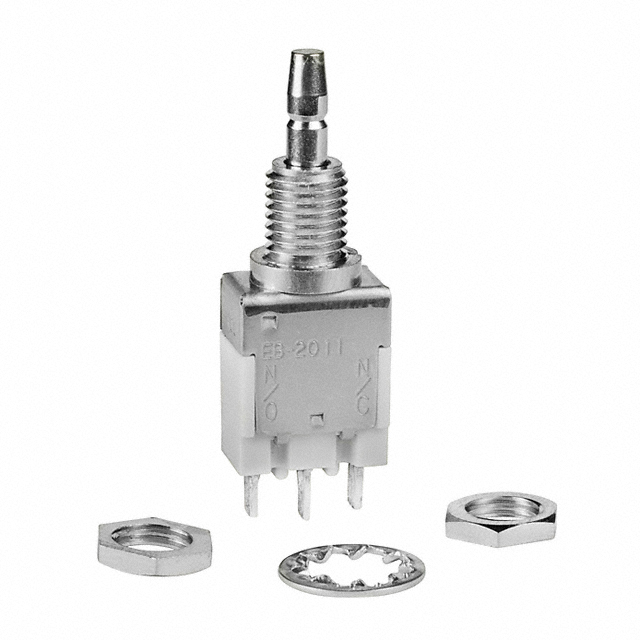

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting Type Through Hole, Right Angle
Type Standard
Circuit 8PDT
Switch Function On-On
Current Rating (Amps) 500mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin, Solder Lug
Features RTV Adhesive Sealant on Terminals
Temperature Range - Operating -40°C ~ 70°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1556842-F8UEETB
Ultra Librarian 3D Model Ultra Librarian F8UEETB CAD Model
