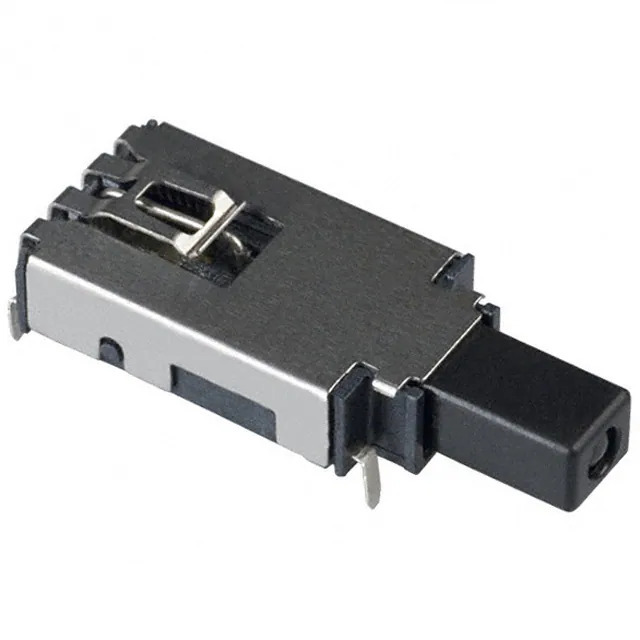

ELUMEETHQ6C12 C&K Components
Same model may have multiple batches, images only for reference.

ELUMEETHQ6C12

Part No ELUMEETHQ6C12
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.25A 50V
Datasheet
ELUMEETHQ6C12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series ELUM™
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 250mA (DC)
Voltage Rating - DC 50 V
Actuator Type Rectangular, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2 VDC
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -40°C ~ 80°C
Mechanical Life -
Electrical Life -
Base Product Number ELUMEETH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1376059-ELUMEETHQ6C12
Ultra Librarian 3D Model Ultra Librarian ELUMEETHQ6C12 CAD Model

Description

The 1376059-ELUMEETHQ6C12 is a pushbutton switch from C&K's ELUM™ series.

  • Type: Standard, Illuminated
  • Temperature Range: -40°C to 80°C
  • Current Rating: 250mA (DC)
  • Voltage Rating: 50V DC
  • Actuator Type: Rectangular, Button-Shaped
  • Actuator/Cap Color: Black
  • Illumination: Green LED @ 2VDC
  • Termination Style: PC Pin
  • Panel Cutout Dimension: Not Specified
  • Circuit: DPDT
  • Switch Function: On-On
