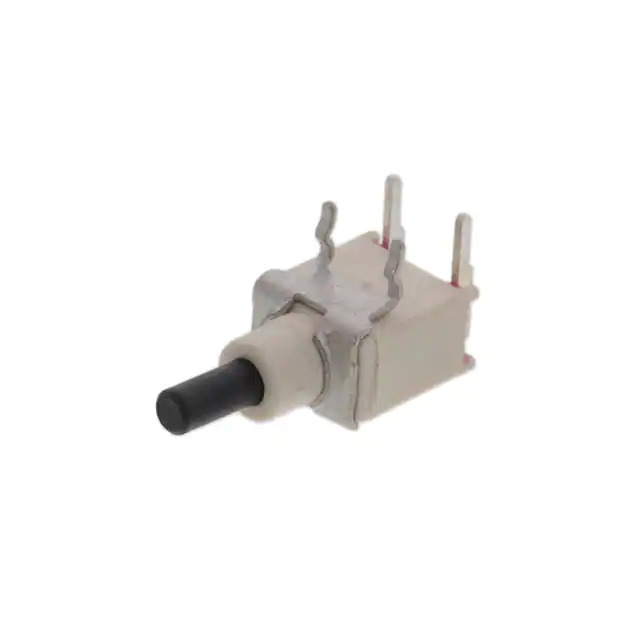

EP11SD1AQE C&K Components
Same model may have multiple batches, images only for reference.

EP11SD1AQE

Part No EP11SD1AQE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 1A 120V
Datasheet
EP11SD1AQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series EP
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life -
Electrical Life 60,000 Cycles
Base Product Number EP11SD1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376086-EP11SD1AQE
Ultra Librarian 3D Model Ultra Librarian EP11SD1AQE CAD Model

Description

The EP11SD1AQE is a pushbutton switch from the EP series manufactured by C&K.

  • Mounting: Through-Hole, Right-Angle
  • Circuit Configuration: SPST-NO
  • Current Rating (AC): 1A
  • Current Rating (DC): 1A
  • Actuator Type: Round, Plunger
  • Actuator/Cap Color: Black
  • Termination Style: PC Pin
  • IP Rating: IP57
  • Voltage Rating (AC): 120V
  • Voltage Rating (DC): 28V
  • Temperature Range: -30°C to 85°C
  • REACH: Unaffected
  • Electrical Life: 60,000 cycles
